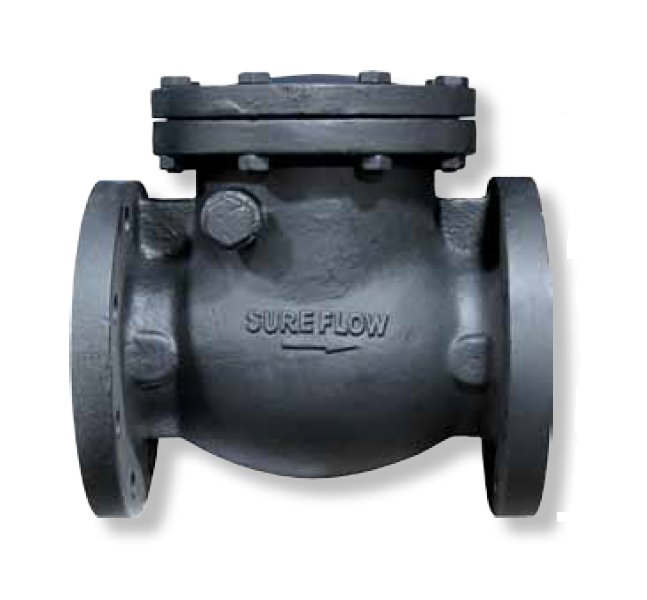

Sure Flow CSF125IB 4 Inch Cast Iron Horizontal Swing Check Valve with Flanged End

Sure Flow CSF125IB 4 Inch Cast Iron Horizontal Swing Check Valve with Flanged End

DOU-6b66ef

Reliable Sure Flow CSF125IB 4" Cast Iron Swing Check Valve for precise fluid control in diverse applications.

$299.99
$299.99
Sale

Initiate Order

Sure Flow CSF125IB 4 Inch Cast Iron Horizontal Swing Check Valve with Flanged End

Sure Flow CSF125IB 4 Inch Cast Iron Horizontal Swing Check Valve with Flanged End

$299.99

Quantity: 1

Claim Your Seller Account

Sure Flow CSF125IB 4 Inch Cast Iron Horizontal Swing Check Valve with Flanged End

Sure Flow CSF125IB 4 Inch Cast Iron Horizontal Swing Check Valve with Flanged End

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow CSF125IB 4 Inch Cast Iron Horizontal Swing Check Valve with Flanged End features a sturdy cast iron body, cover, and disc, ensuring durability and reliability for fluid flow control. Equipped with bronze seat and disc rings, this valve offers superior sealing compared to standard iron facings, making it ideal for various temperature and fluid environments. With ASME Class 125 and ISO 9001 certifications, this valve meets stringent industry standards, guaranteeing quality performance and compliance.

Product Specifications

Construction Construction

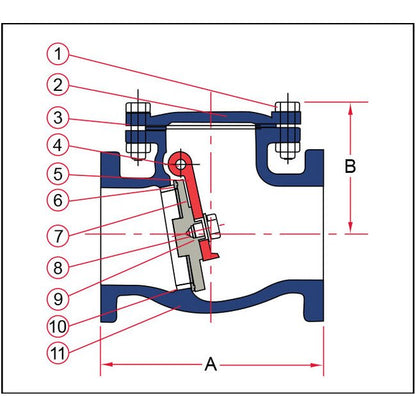

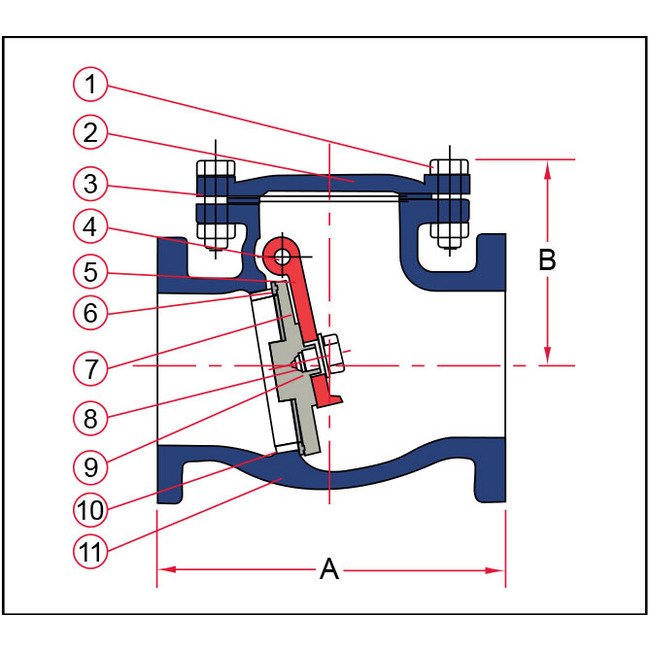

Item - 1Description - Cover BoltingMaterial - SteelItem - 2Description - CoverMaterial - A126 Class BItem - 3Description - GasketMaterial - GraphiteItem - 4Description - Hanger PinMaterial - Stainless SteelItem - 5Description - HangerMaterial - A126 Class BItem - 6Description - Disc RingMaterial - B62Item - 7Description - DiscMaterial - A126 Class BItem - 8Description - Disc WasherMaterial - SteelItem - 9Description - Disc BoltMaterial - SteelItem - 10Description - Seat RingMaterial - B62Item - 11Description - Cast BodyMaterial - A126 Class B
Dimensions Dimension A
11 1/2 in
Dimensions Dimension B
7 1/8 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
96 lb
Dimensions Size
4 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
