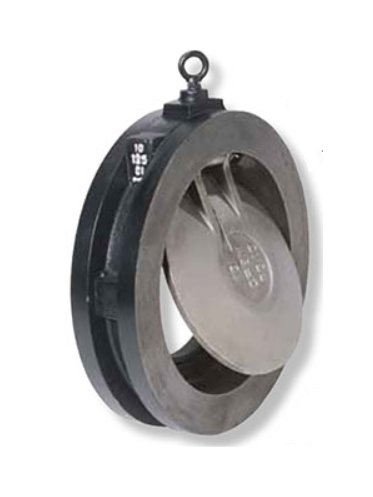

Sure Flow CSW125IS 10-Inch Cast Iron Wafer Swing Check Valve
Sure Flow CSW125IS 10-Inch Cast Iron Wafer Swing Check Valve
SKU:DOU-635a9d
Ensure silent, non-slam operation with the Sure Flow CSW125IS 10" Cast Iron Check Valve. Prevent water hammer and secure sealing for industrial fluids.
Regular price
$589.00
Regular price
Sale price
$589.00
Unit price
per
Initiate Order
Sure Flow CSW125IS 10-Inch Cast Iron Wafer Swing Check Valve
$589.00
Quantity: 1
Claim Your Seller Account
Sure Flow CSW125IS 10-Inch Cast Iron Wafer Swing Check Valve
$589.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW125IS 10-Inch Cast Iron Wafer Swing Check Valve is designed for silent, fast, and non-slam operation. Featuring a specially crafted 316 Stainless Steel disc with quick closing action and spring loading, this valve ensures instant closure to reverse flow, preventing damaging water hammer effects. The hinge pin design allows for smooth disc movement even under extreme conditions, while the Buna-N soft seat insert provides excellent sealing for challenging solvents and fluids. With standard features like a lifting eye hook on 8" to 16" valves, this valve combines reliability and efficiency for various industrial applications.
Product Specifications

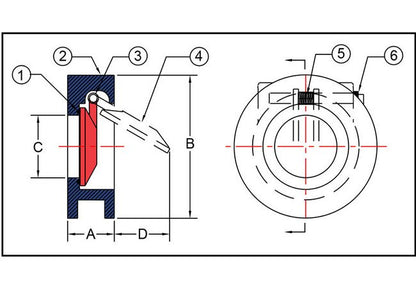

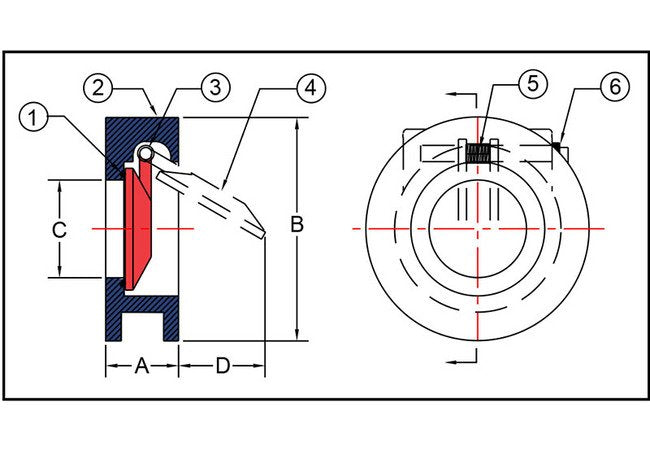

Construction Construction
Item - 1Description - O-Ring SealMaterial - Buna-NItem - 2Description - Cast BodyMaterial - ASTMA126 Class BItem - 3Description - ShaftMaterial - 316 Stainless SteelItem - 4Description - DiscMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - PlugMaterial - ASTMA126 Class B
Dimensions Dimension A
3 1/8 in
Dimensions Dimension B
13 3/8 in
Dimensions Dimension C
7 3/4 in
Dimensions Dimension D
7 3/16 in
Dimensions Prefix Size
1000
Dimensions Shipping Weight
115 lb
Dimensions Size
10 in
Dimensions Valve Flow Coefficient Cv
2,350
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
