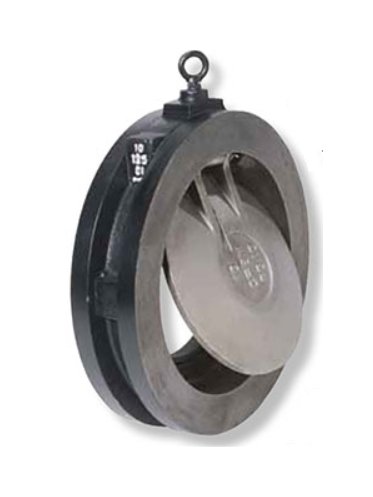

Sure Flow CSW125IS 12 Inch Cast Iron Wafer Swing Check Valve
Sure Flow CSW125IS 12 Inch Cast Iron Wafer Swing Check Valve
SKU:DOU-288e8f
The Sure Flow CSW125IS 12 Inch Check Valve ensures silent, non-slam operation with quick closing action and high sealing reliability.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
Sure Flow CSW125IS 12 Inch Cast Iron Wafer Swing Check Valve
$849.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW125IS 12 Inch Cast Iron Wafer Swing Check Valve
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW125IS 12 Inch Cast Iron Wafer Swing Check Valve is designed for silent, fast, non-slam operation. Featuring an accurately machined 316 Stainless Steel disc with quick closing action, this valve prevents damaging water hammer by instantly closing to reversing flow. It includes a Buna-N soft seat insert for positive sealing and a hinge pin design for free disc movement even under extreme conditions. With ASME Class 125 and ISO 9001:2008 certifications, this valve meets high industry standards.
Product Specifications

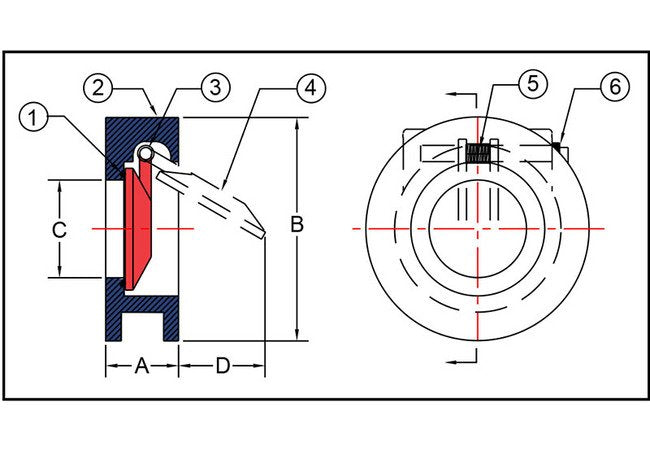

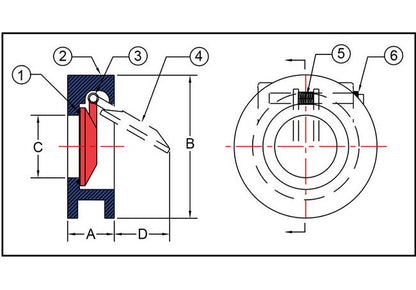

Construction Construction
Item - 1Description - O-Ring SealMaterial - Buna-NItem - 2Description - Cast BodyMaterial - ASTMA126 Class BItem - 3Description - ShaftMaterial - 316 Stainless SteelItem - 4Description - DiscMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - PlugMaterial - ASTMA126 Class B
Dimensions Dimension A
3 3/8 in
Dimensions Dimension B
16 1/8 in
Dimensions Dimension C
9 1/2 in
Dimensions Dimension D
9 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
140 lb
Dimensions Size
12 in
Dimensions Valve Flow Coefficient Cv
3,850
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
