The Sure Flow CSW125IS 14-inch Cast Iron Wafer Swing Disc Design Check Valve is designed for silent, fast, non-slam operation. Featuring an accurately machined disc with quick closing action and 316 Stainless Steel construction, this valve ensures instantaneous closure to reversing flow, preventing water hammer. The Buna-N soft seat insert provides positive sealing for various solvents and fluids. With ASME Class 125 and ISO 9001:2008 certifications, it meets high industry standards for reliability and performance.
Product Specifications

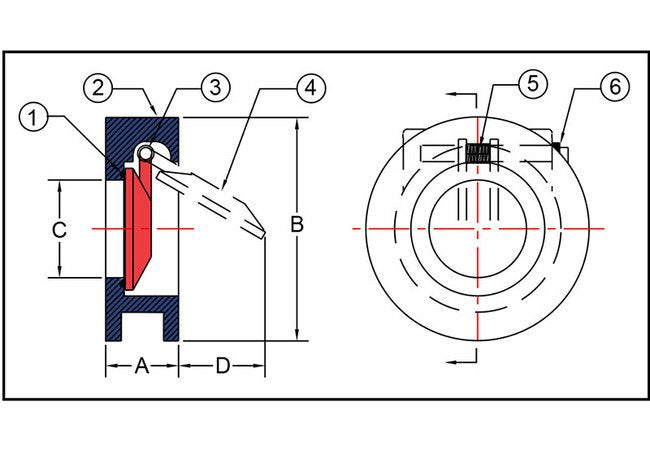

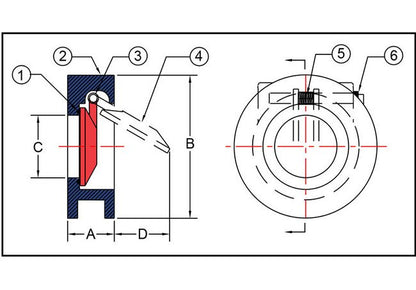

Construction Construction
Item - 1Description - O-Ring SealMaterial - Buna-NItem - 2Description - Cast BodyMaterial - ASTMA126 Class BItem - 3Description - ShaftMaterial - 316 Stainless SteelItem - 4Description - DiscMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - PlugMaterial - ASTMA126 Class B
Dimensions Dimension A
4 1/4 in
Dimensions Dimension B
17 5/8 in
Dimensions Dimension C
10 1/8 in
Dimensions Dimension D
9 3/4 in
Dimensions Prefix Size
1400
Dimensions Shipping Weight
170 lb
Dimensions Size
14 in
Dimensions Valve Flow Coefficient Cv
4,250
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Cast Iron
