Sure Flow CSW125IS 16" Cast Iron Wafer Swing Check Valve
Sure Flow CSW125IS 16" Cast Iron Wafer Swing Check Valve
SKU:DOU-f6a481
Ensure silent, fast, non-slam operation with the Sure Flow CSW125IS 16-inch Cast Iron Wafer Swing Check Valve. ASME Class 125 and ISO 9001:2008 compliant.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Sure Flow CSW125IS 16" Cast Iron Wafer Swing Check Valve
$599.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW125IS 16" Cast Iron Wafer Swing Check Valve
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

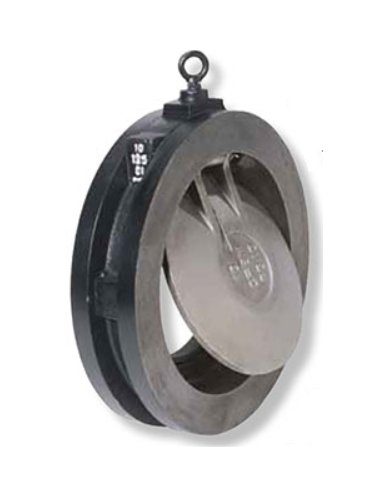

Experience silent, fast, and non-slam operation with the Sure Flow CSW125IS 16-inch Cast Iron Wafer Swing Check Valve. This valve features a precisely machined disc with a quick closing action for instant flow reversal prevention, eliminating damaging water hammer effects. The spring-loaded 316 Stainless Steel disc ensures reliable closure, while the Buna-N soft seat insert guarantees a secure seal for hard-to-hold solvents and fluids. With a durable construction meeting ASME Class 125 and ISO 9001:2008 standards, this valve is ideal for industrial applications requiring efficiency and safety.
Product Specifications

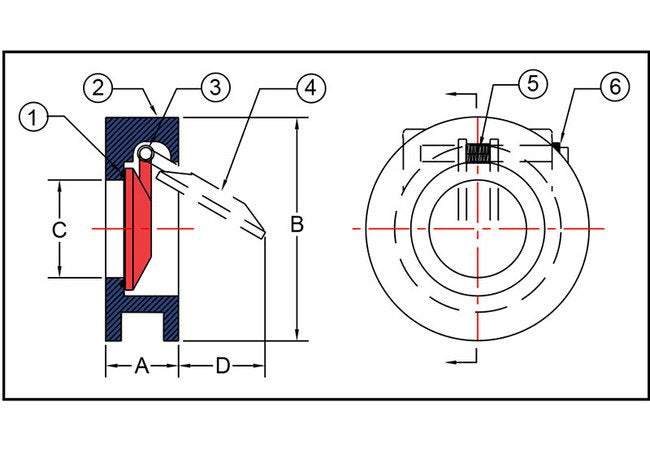

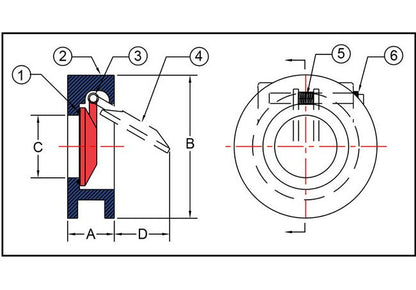

Construction Construction
Item - 1Description - O-Ring SealMaterial - Buna-NItem - 2Description - Cast BodyMaterial - ASTMA126 Class BItem - 3Description - ShaftMaterial - 316 Stainless SteelItem - 4Description - DiscMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - PlugMaterial - ASTMA126 Class B
Dimensions Dimension A
4 1/4 in
Dimensions Dimension B
20 1/4 in
Dimensions Dimension C
11 1/4 in
Dimensions Dimension D
12 in
Dimensions Prefix Size
1600
Dimensions Shipping Weight
200 lb
Dimensions Size
16 in
Dimensions Valve Flow Coefficient Cv
7,000
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Cast Iron
