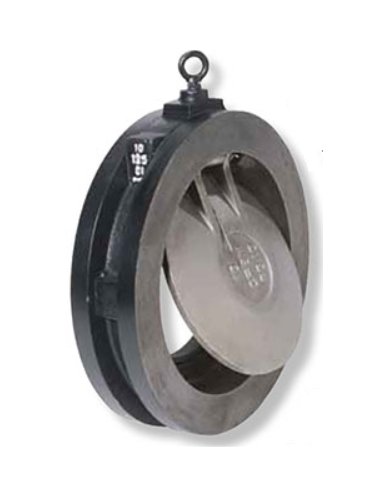

Sure Flow CSW125IS 2.5in Cast Iron Swing Disc Check Valve
Sure Flow CSW125IS 2.5in Cast Iron Swing Disc Check Valve
SKU:DOU-08319a
Silent & Quick Operation Cast Iron Check Valve - Meets ASME Class 125 & ISO 9001:2008
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Sure Flow CSW125IS 2.5in Cast Iron Swing Disc Check Valve
$239.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW125IS 2.5in Cast Iron Swing Disc Check Valve
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW125IS 2 1/2 Inch Cast Iron Wafer Swing Disc Check Valve is designed for silent, fast, and non-slam operation. Its precision-machined 316 Stainless Steel disc ensures quick closure to reverse flow, preventing water hammer. With a Buna-N soft seat insert, it seals hard-to-hold solvents and fluids securely. This valve meets ASME Class 125 and ISO 9001:2008 standards, making it a reliable choice for industrial applications.
Product Specifications

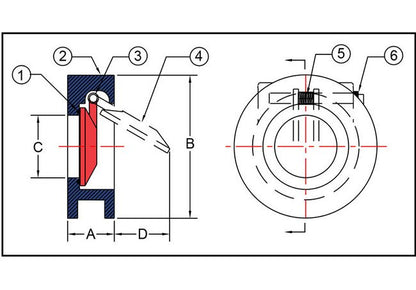

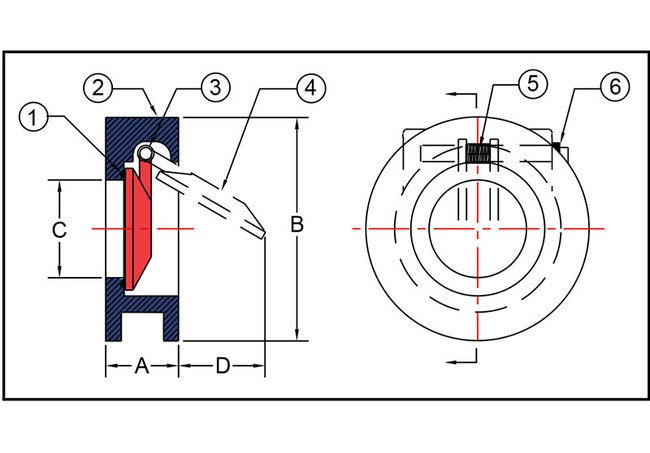

Construction Construction
Item - 1Description - O-Ring SealMaterial - Buna-NItem - 2Description - Cast BodyMaterial - ASTMA126 Class BItem - 3Description - ShaftMaterial - 316 Stainless SteelItem - 4Description - DiscMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - PlugMaterial - ASTMA126 Class B
Dimensions Dimension A
2 3/8 in
Dimensions Dimension B
4 7/8 in
Dimensions Dimension C
1 3/4 in
Dimensions Dimension D
1 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
12 lb
Dimensions Size
2 1/2 in
Dimensions Valve Flow Coefficient Cv
190
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
