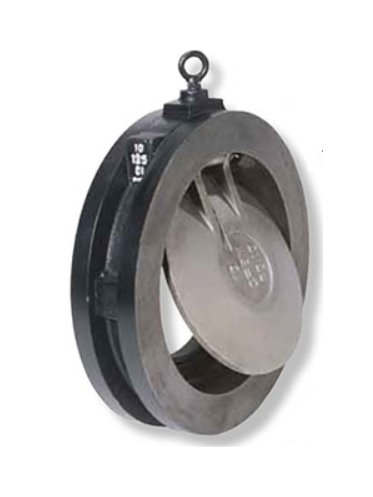

Sure Flow CSW125IS 2" Cast Iron Wafer Swing Check Valve
Sure Flow CSW125IS 2" Cast Iron Wafer Swing Check Valve
SKU:DOU-67b091
Sure Flow CSW125IS 2" Cast Iron Check Valve for silent, non-slam operation. ASME Class 125 & ISO 9001:2008 compliant.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow CSW125IS 2" Cast Iron Wafer Swing Check Valve
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW125IS 2" Cast Iron Wafer Swing Check Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW125IS 2 inch Cast Iron Wafer Swing Check Valve is designed for silent, fast, and non-slam operation. Featuring an accurately machined 316 Stainless Steel disc with quick closing action and spring loading, it ensures instantaneous closure to reversing flows, preventing damaging water hammer. The hinge pin design allows for free movement of the disc, eliminating seizure under extreme conditions. With a standard Buna-N soft seat insert for positive sealing and adherence to ASME Class 125 and ISO 9001:2008 standards, this valve is ideal for various applications.
Product Specifications

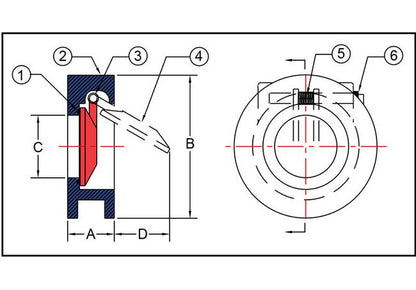

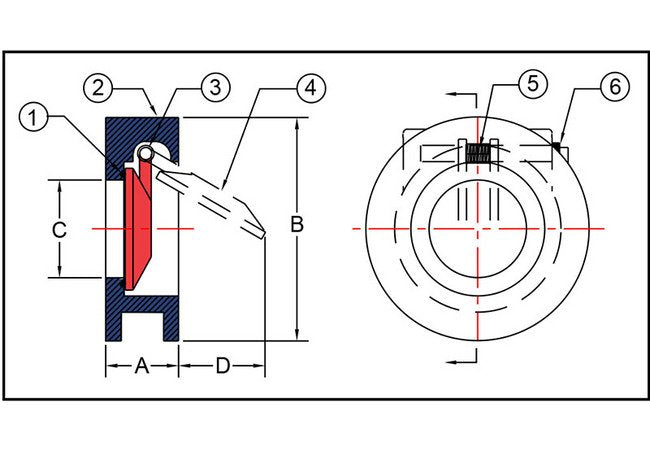

Construction Construction
Item - 1Description - O-Ring SealMaterial - Buna-NItem - 2Description - Cast BodyMaterial - ASTMA126 Class BItem - 3Description - ShaftMaterial - 316 Stainless SteelItem - 4Description - DiscMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - PlugMaterial - ASTMA126 Class B
Dimensions Dimension A
2 1/4 in
Dimensions Dimension B
4 1/8 in
Dimensions Dimension C
1 1/2 in
Dimensions Dimension D
7/8 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
10 lb
Dimensions Size
2 in
Dimensions Valve Flow Coefficient Cv
70
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
