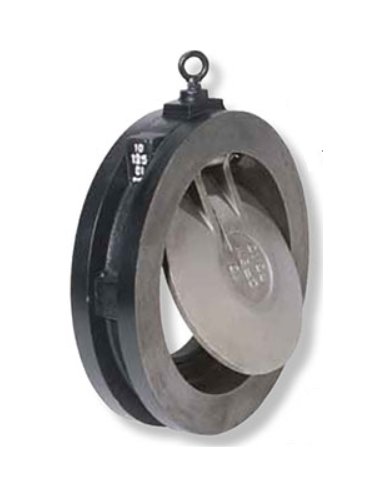

Sure Flow CSW125IS 3 Inch Cast Iron Wafer Swing Check Valve
Sure Flow CSW125IS 3 Inch Cast Iron Wafer Swing Check Valve
SKU:DOU-f2912e
Silent operation, quick closing action, and superior seal make the Sure Flow CSW125IS ideal for efficient flow control.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Sure Flow CSW125IS 3 Inch Cast Iron Wafer Swing Check Valve
$249.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW125IS 3 Inch Cast Iron Wafer Swing Check Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW125IS 3 Inch Cast Iron Wafer Swing Check Valve is engineered for silent, fast, and non-slam operation. Featuring a 316 Stainless Steel disc with quick closing action and spring loading for instantaneous closure, it prevents water hammer damage. With a Buna-N soft seat insert for superior sealing, this valve ensures efficient flow control. The ASME Class 125 and ISO 9001:2008 certifications guarantee compliance with industry standards.
Product Specifications

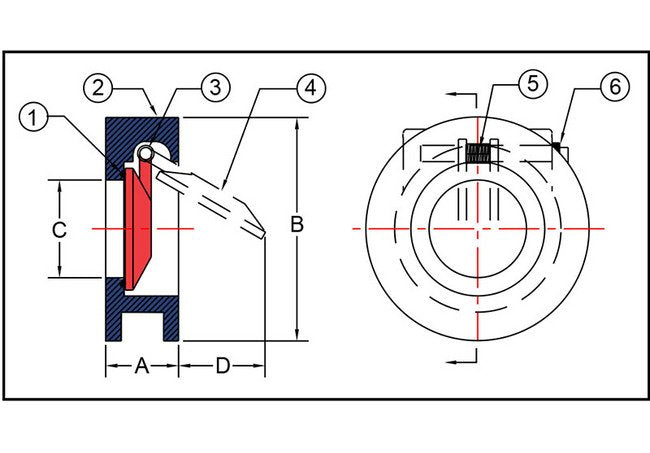

Construction Construction
Item - 1Description - O-Ring SealMaterial - Buna-NItem - 2Description - Cast BodyMaterial - ASTMA126 Class BItem - 3Description - ShaftMaterial - 316 Stainless SteelItem - 4Description - DiscMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - PlugMaterial - ASTMA126 Class B
Dimensions Dimension A
2 5/8 in
Dimensions Dimension B
5 3/8 in
Dimensions Dimension C
2 1/8 in
Dimensions Dimension D
1 1/2 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
17 lb
Dimensions Size
3 in
Dimensions Valve Flow Coefficient Cv
225
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
