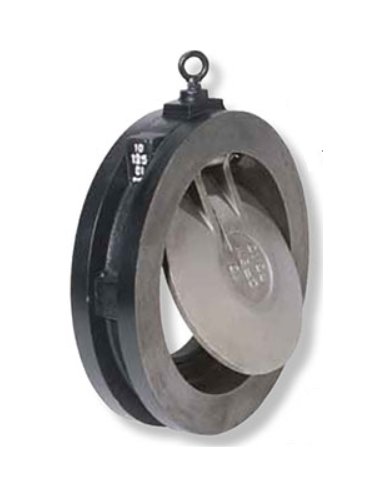

The Sure Flow CSW125IS 4-Inch Cast Iron Wafer Swing Disc Design Check Valve sets itself apart with a precision-machined disc for quick, silent, and non-slam operation. Featuring a 316 Stainless Steel disc with spring loading for instant closure, this valve prevents damaging water hammer by swiftly reversing flow. The hinge pin design ensures smooth disc movement even in extreme conditions, with a Buna-N soft seat insert for secure sealing. Meeting ASME Class 125 and ISO 9001:2008 standards, this valve provides reliable performance with top-notch materials and design.
Product Specifications
Construction Construction

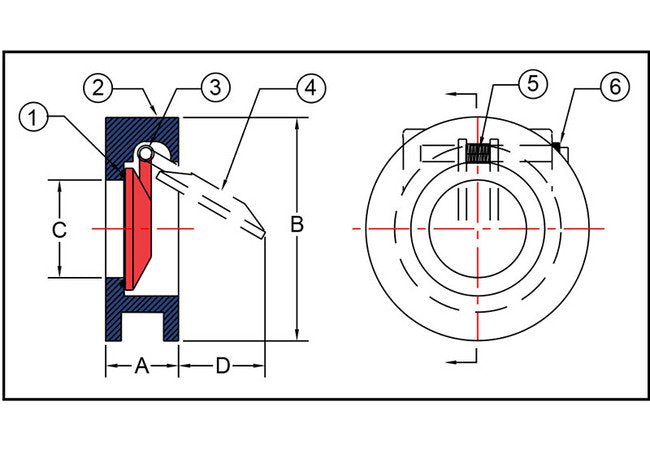

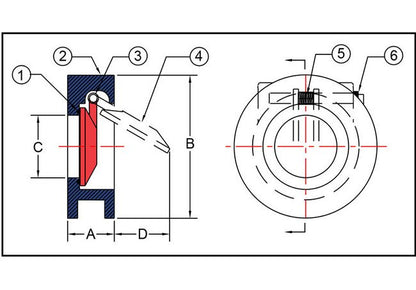

Item - 1Description - O-Ring SealMaterial - Buna-NItem - 2Description - Cast BodyMaterial - ASTMA126 Class BItem - 3Description - ShaftMaterial - 316 Stainless SteelItem - 4Description - DiscMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - PlugMaterial - ASTMA126 Class B
Dimensions Dimension A
2 1/4 in
Dimensions Dimension B
6 7/8 in
Dimensions Dimension C
3 1/8 in
Dimensions Dimension D
2 1/4 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
26 lb
Dimensions Size
4 in
Dimensions Valve Flow Coefficient Cv
295
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
