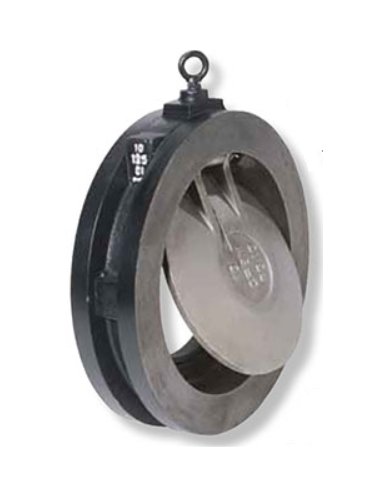

Sure Flow CSW125IS 5In Cast Iron Wafer Swing Check Valve
Sure Flow CSW125IS 5In Cast Iron Wafer Swing Check Valve
SKU:DOU-04b43b
The Sure Flow CSW125IS 5In Cast Iron Wafer Swing Check Valve: silent, non-slam operation, ASME Class 125 & ISO 9001:2008 compliant.
Regular price
$219.99
Regular price
Sale price
$219.99
Unit price
per
Initiate Order
Sure Flow CSW125IS 5In Cast Iron Wafer Swing Check Valve
$219.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW125IS 5In Cast Iron Wafer Swing Check Valve
$219.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW125IS 5 Inch Cast Iron Wafer Swing Disc Design Check Valve sets itself apart with precision-engineered features for silent, non-slam operation. The 316 Stainless Steel disc closes rapidly, ensuring no damaging water hammer. With a Buna-N soft seat insert, it provides excellent sealing for various solvents. Meeting ASME Class 125 and ISO 9001:2008 standards, this valve guarantees reliable performance and durability. The hinge pin design allows smooth disc movement even in extreme conditions, preventing seizing. Install it 7 to 10 pipe lengths away from turbulence for optimal results.
Product Specifications
Construction Construction

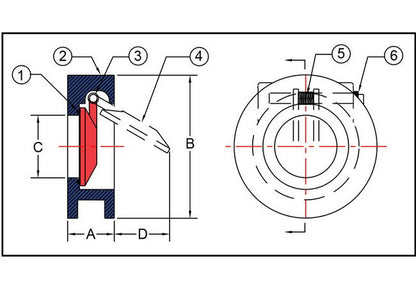

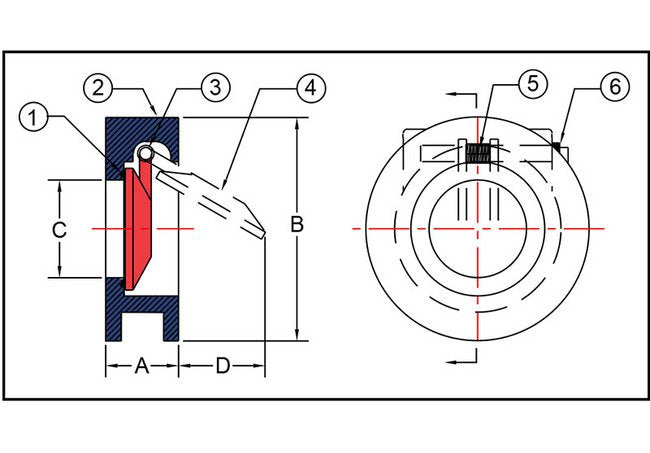

Item - 1Description - O-Ring SealMaterial - Buna-NItem - 2Description - Cast BodyMaterial - ASTMA126 Class BItem - 3Description - ShaftMaterial - 316 Stainless SteelItem - 4Description - DiscMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - PlugMaterial - ASTMA126 Class B
Dimensions Dimension A
2 1/2 in
Dimensions Dimension B
7 3/4 in
Dimensions Dimension C
3 7/8 in
Dimensions Dimension D
2 1/2 in
Dimensions Prefix Size
0500
Dimensions Shipping Weight
36 lb
Dimensions Size
5 in
Dimensions Valve Flow Coefficient Cv
430
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
