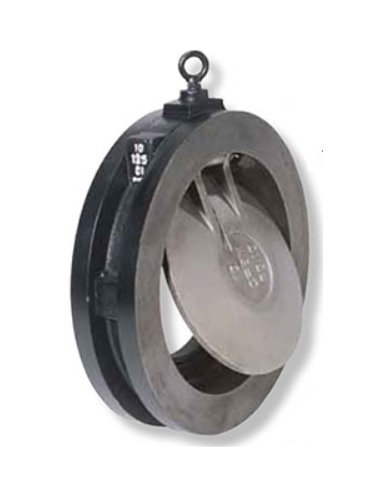

Sure Flow CSW125IS 6 Inch Cast Iron Wafer Swing Check Valve
Sure Flow CSW125IS 6 Inch Cast Iron Wafer Swing Check Valve
SKU:DOU-277c4e
Silent, fast, and non-slam operation in a 6-inch Sure Flow Cast Iron Wafer Swing Check Valve, ASME Class 125 & ISO 9001:2008 certified.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Sure Flow CSW125IS 6 Inch Cast Iron Wafer Swing Check Valve
$249.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW125IS 6 Inch Cast Iron Wafer Swing Check Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW125IS 6 Inch Cast Iron Wafer Swing Check Valve sets itself apart with its silent, fast, and non-slam operation. Featuring a precisely machined disc with quick closing action, this valve prevents damaging water hammer by ensuring instantaneous closure to reversing flow. The 316 Stainless Steel disc is spring-loaded for reliable performance, complemented by a Buna-N soft seat insert for positive sealing of challenging solvents. Meeting ASME Class 125 and ISO 9001:2008 standards, this valve guarantees top-quality construction and efficient flow control.
Product Specifications

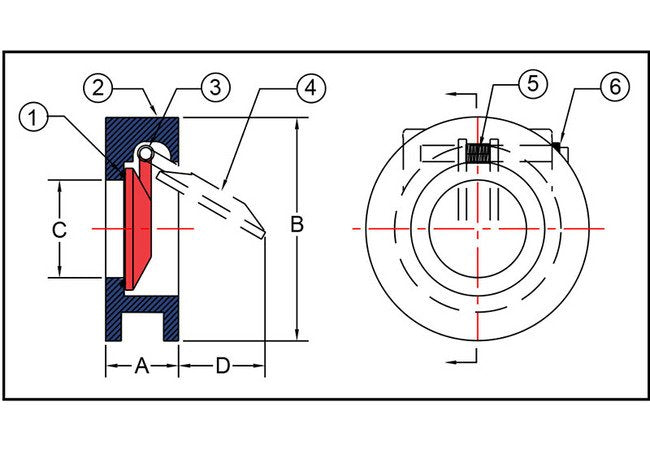

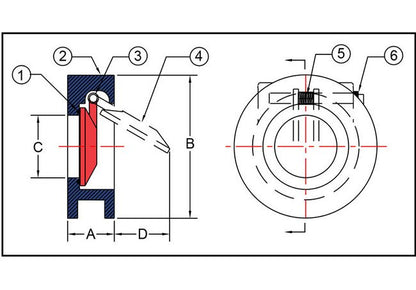

Construction Construction
Item - 1Description - O-Ring SealMaterial - Buna-NItem - 2Description - Cast BodyMaterial - ASTMA126 Class BItem - 3Description - ShaftMaterial - 316 Stainless SteelItem - 4Description - DiscMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - PlugMaterial - ASTMA126 Class B
Dimensions Dimension A
2 3/4 in
Dimensions Dimension B
8 3/4 in
Dimensions Dimension C
4 3/4 in
Dimensions Dimension D
2 3/4 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
53 lb
Dimensions Size
6 in
Dimensions Valve Flow Coefficient Cv
700
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
