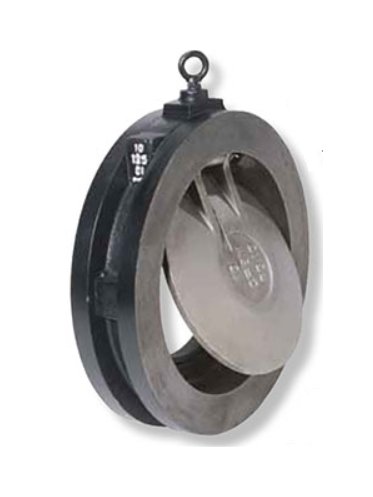

Sure Flow CSW125IS 8 Inch Cast Iron Wafer Swing Check Valve
Sure Flow CSW125IS 8 Inch Cast Iron Wafer Swing Check Valve
SKU:DOU-56e283
Silent, fast, non-slam operation; Buna-N soft seat; Meets ASME Class 125 and ISO 9001:2008 standards.
Regular price
$289.00
Regular price
Sale price
$289.00
Unit price
per
Initiate Order
Sure Flow CSW125IS 8 Inch Cast Iron Wafer Swing Check Valve
$289.00
Quantity: 1
Claim Your Seller Account
Sure Flow CSW125IS 8 Inch Cast Iron Wafer Swing Check Valve
$289.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW125IS 8 Inch Cast Iron Wafer Swing Check Valve stands out with its silent, fast, non-slam operation, featuring an accurately machined disc for quick closing and preventing water hammer. Constructed with durable materials including Buna-N soft seat, 316 Stainless Steel disc, and hinge pin design ensuring reliable performance even under extreme conditions. This valve meets ASME Class 125 and ISO 9001:2008 standards, providing secure sealing for various solvents and fluids.
Product Specifications

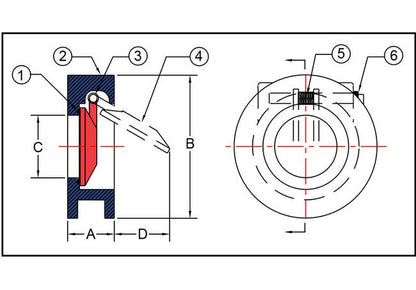

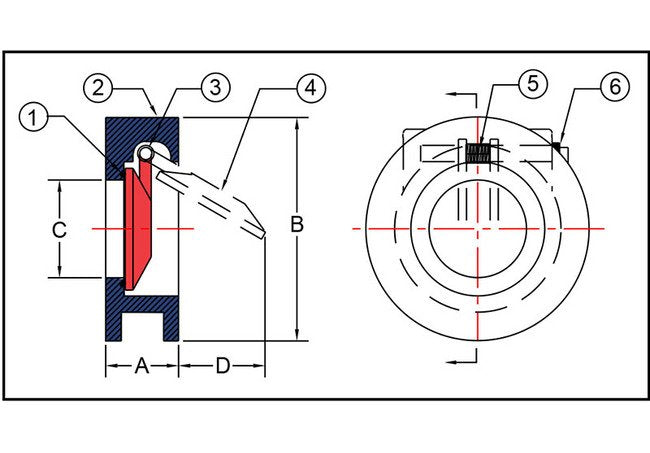

Construction Construction
Item - 1Description - O-Ring SealMaterial - Buna-NItem - 2Description - Cast BodyMaterial - ASTMA126 Class BItem - 3Description - ShaftMaterial - 316 Stainless SteelItem - 4Description - DiscMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - PlugMaterial - ASTMA126 Class B
Dimensions Dimension A
2 7/8 in
Dimensions Dimension B
11 in
Dimensions Dimension C
6 1/2 in
Dimensions Dimension D
4 in
Dimensions Prefix Size
0800
Dimensions Shipping Weight
72 lb
Dimensions Size
8 in
Dimensions Valve Flow Coefficient Cv
1,270
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
