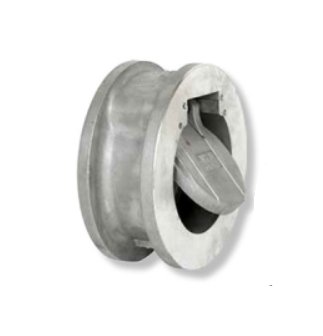

Sure Flow CSW150SSMIR 10 Inch Cast Stainless Steel Wafer Swing Check Valve
Sure Flow CSW150SSMIR 10 Inch Cast Stainless Steel Wafer Swing Check Valve
SKU:DOU-488518
Silent, non-slam operation with quick closing action and ASME Class 150 & ISO 9001:2008 compliance.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow CSW150SSMIR 10 Inch Cast Stainless Steel Wafer Swing Check Valve
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW150SSMIR 10 Inch Cast Stainless Steel Wafer Swing Check Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW150SSMIR 10 Inch Cast Stainless Steel Wafer Swing Check Valve is designed for silent, fast, non-slam operation in industrial applications. Featuring a meticulously machined 316 Stainless Steel disc with quick closing action, this valve ensures instant reversal flow closure, preventing water hammer damage. With a hinge pin design for smooth disc movement and integral metal seat for sealing, it offers reliable performance under extreme conditions. Meeting ASME Class 150 and ISO 9001:2008 standards, this valve is ideal for applications requiring precision and efficiency.
Product Specifications

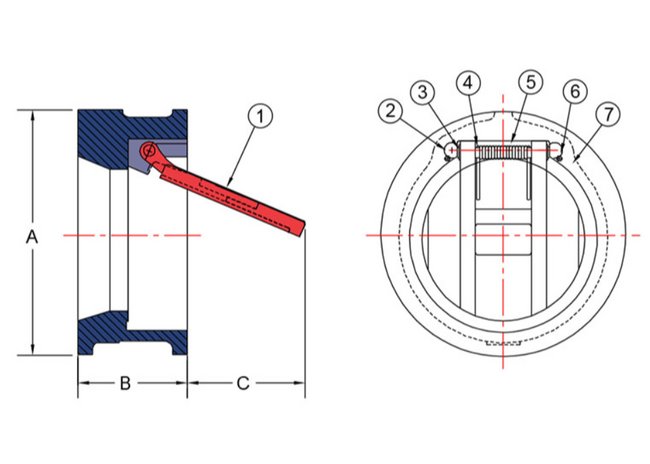

Construction Construction
Item - 1Description - DiscMaterial - A351 Gr. CF8MItem - 2Description - Set BoltMaterial - 316 Stainless SteelItem - 3Description - WasherMaterial - 316 Stainless SteelItem - 4Description - GuideMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - InsertMaterial - A351 Gr. CF8MItem - 7Description - Cast BodyMaterial - A351 Gr. CF8M
Dimensions Dimension A
13 3/8 in
Dimensions Dimension B
5 3/4 in
Dimensions Dimension C
5 7/16 in
Dimensions Prefix Size
1000
Dimensions Shipping Weight
143 lb
Dimensions Size
10 in
Dimensions Valve Flow Coefficient Cv
2,350
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
