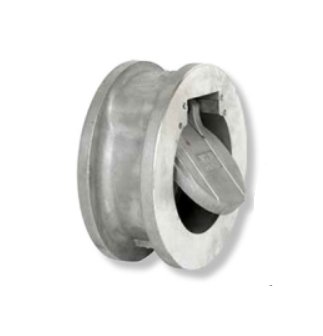

Sure Flow CSW150SSMIR 12-Inch Cast Stainless Steel Wafer Swing Check Valve
Sure Flow CSW150SSMIR 12-Inch Cast Stainless Steel Wafer Swing Check Valve
SKU:DOU-b3dbd2
Ensure silent, non-slam operation with the Sure Flow CSW150SSMIR 12-Inch Cast Stainless Steel Wafer Swing Check Valve, meeting ASME Class 150 and ISO 9001:2008 standards.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
Sure Flow CSW150SSMIR 12-Inch Cast Stainless Steel Wafer Swing Check Valve
$589.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW150SSMIR 12-Inch Cast Stainless Steel Wafer Swing Check Valve
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW150SSMIR 12-Inch Cast Stainless Steel Wafer Swing Check Valve is engineered for silent and non-slam operation, featuring a precision-machined disc for quick closing action and spring loading for immediate flow reversal prevention. With a durable construction conforming to ASME Class 150 and ISO 9001:2008 standards, this valve ensures reliable performance under varying conditions. Designed with an integral metal seat, hinge pin, and lifting eye hook, it offers superior functionality and durability for industrial applications.

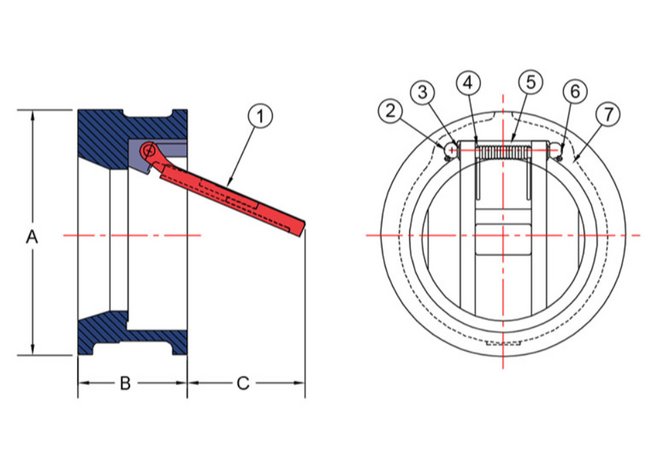

Product Specifications
Construction Construction
Item - 1Description - DiscMaterial - A351 Gr. CF8MItem - 2Description - Set BoltMaterial - 316 Stainless SteelItem - 3Description - WasherMaterial - 316 Stainless SteelItem - 4Description - GuideMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - InsertMaterial - A351 Gr. CF8MItem - 7Description - Cast BodyMaterial - A351 Gr. CF8M
Dimensions Dimension A
16 1/8 in
Dimensions Dimension B
7 1/8 in
Dimensions Dimension C
5 7/8 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
252 lb
Dimensions Size
12 in
Dimensions Valve Flow Coefficient Cv
3,850
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
