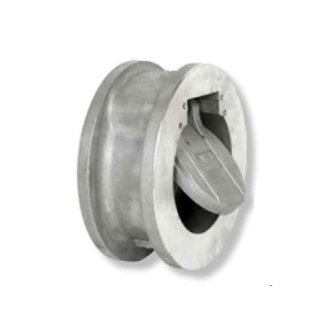

Sure Flow CSW150SSMIR 14" Cast Stainless Steel Wafer Swing Check Valve

Sure Flow CSW150SSMIR 14" Cast Stainless Steel Wafer Swing Check Valve

SKU:DOU-2fa16e

Ensure fast, silent, and non-slam operation with Sure Flow's 14" Cast Stainless Steel Wafer Check Valve for ASME Class 150 and ISO 9001:2008 compliance.

Regular price $799.99
Regular price Sale price $799.99
Sale

Initiate Order

Sure Flow CSW150SSMIR 14" Cast Stainless Steel Wafer Swing Check Valve

Sure Flow CSW150SSMIR 14" Cast Stainless Steel Wafer Swing Check Valve

$799.99

Quantity: 1

Claim Your Seller Account

Sure Flow CSW150SSMIR 14" Cast Stainless Steel Wafer Swing Check Valve

Sure Flow CSW150SSMIR 14" Cast Stainless Steel Wafer Swing Check Valve

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow CSW150SSMIR 14" Cast Stainless Steel Wafer Swing Check Valve is designed for silent and fast operation, thanks to its accurately machined disc with quick closing action. With spring-loaded 316 Stainless Steel disc, it ensures instant closure to reverse flow, preventing damaging water hammer. The hinge pin design allows for free movement of the disc under extreme conditions, while the integral metal seat provides reliable sealing. Meeting ASME Class 150 and ISO 9001:2008 certifications, this valve guarantees quality and performance in institutional applications.

Product Specifications

Construction Construction

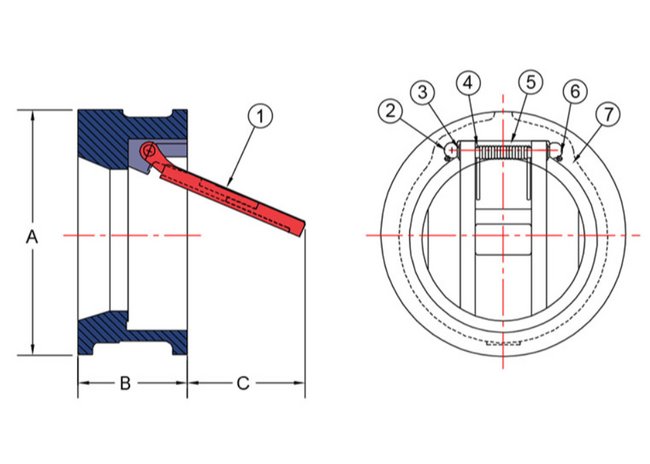

Item - 1Description - DiscMaterial - A351 Gr. CF8MItem - 2Description - Set BoltMaterial - 316 Stainless SteelItem - 3Description - WasherMaterial - 316 Stainless SteelItem - 4Description - GuideMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - InsertMaterial - A351 Gr. CF8MItem - 7Description - Cast BodyMaterial - A351 Gr. CF8M
Dimensions Dimension A
17 3/4 in
Dimensions Dimension B
7 1/4 in
Dimensions Dimension C
7 in
Dimensions Prefix Size
1400
Dimensions Shipping Weight
294 lb
Dimensions Size
14 in
Dimensions Valve Flow Coefficient Cv
4,250
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
