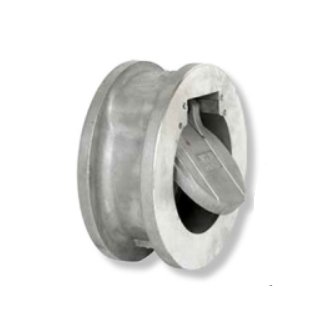

Sure Flow CSW150SSMIR 2-inch Cast Stainless Steel Wafer Swing Check Valve
Sure Flow CSW150SSMIR 2-inch Cast Stainless Steel Wafer Swing Check Valve
SKU:DOU-997edd
Silent, fast, non-slam 2-inch Cast Stainless Steel Wafer Swing Check Valve meeting ASME Class 150 standards.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow CSW150SSMIR 2-inch Cast Stainless Steel Wafer Swing Check Valve
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW150SSMIR 2-inch Cast Stainless Steel Wafer Swing Check Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW150SSMIR 2-inch Cast Stainless Steel Wafer Swing Check Valve sets itself apart with its silent, fast, non-slam operation. Featuring a meticulously machined disc with quick closing action, this valve ensures instantaneous closure to reversing flow, preventing damaging water hammer. The spring-loaded 316 Stainless Steel disc, along with the hinge pin design, guarantees smooth movement and eliminates seizure even under extreme conditions. Meeting ASME Class 150 and ISO 9001:2008 (Intertek) standards, this valve also incorporates an integral metal seat for reliable sealing, making it a top choice for institutional and government procurement.
Product Specifications
Construction Construction

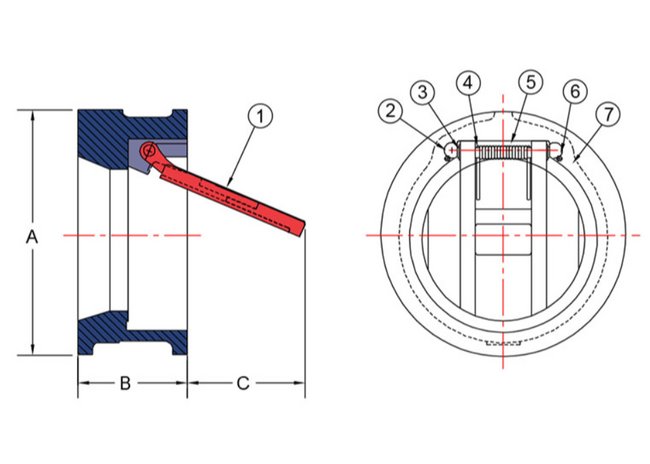

Item - 1Description - DiscMaterial - A351 Gr. CF8MItem - 2Description - Set BoltMaterial - 316 Stainless SteelItem - 3Description - WasherMaterial - 316 Stainless SteelItem - 4Description - GuideMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - InsertMaterial - A351 Gr. CF8MItem - 7Description - Cast BodyMaterial - A351 Gr. CF8M
Dimensions Dimension A
4 1/8 in
Dimensions Dimension B
2 3/8 in
Dimensions Dimension C
1 1/8 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
8 lb
Dimensions Size
2 in
Dimensions Valve Flow Coefficient Cv
70
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
