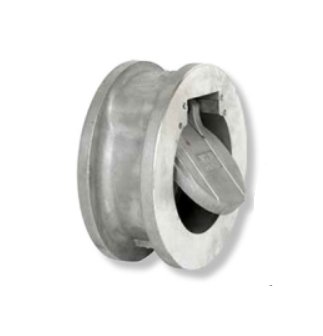

Sure Flow CSW150SSMIR 3 Inch Cast Stainless Steel Wafer Swing Check Valve
Sure Flow CSW150SSMIR 3 Inch Cast Stainless Steel Wafer Swing Check Valve
SKU:DOU-f08118
Ensure reliable, non-slam operation with the Sure Flow CSW150SSMIR 3 Inch Cast Stainless Steel Swing Check Valve. ASME Class 150 and ISO 9001:2008 compliant.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow CSW150SSMIR 3 Inch Cast Stainless Steel Wafer Swing Check Valve
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW150SSMIR 3 Inch Cast Stainless Steel Wafer Swing Check Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW150SSMIR 3 Inch Cast Stainless Steel Wafer Swing Check Valve is designed for silent, fast, non-slam operation. Featuring a precision-machined disc with quick closing action and 316 Stainless Steel spring loading for instantaneous closure, it prevents water hammer. The hinge pin design ensures smooth disc movement even under extreme conditions, while the integral metal seat provides reliable sealing. Meeting ASME Class 150 and ISO 9001:2008 standards, this valve is built to deliver high performance and durability.
Product Specifications

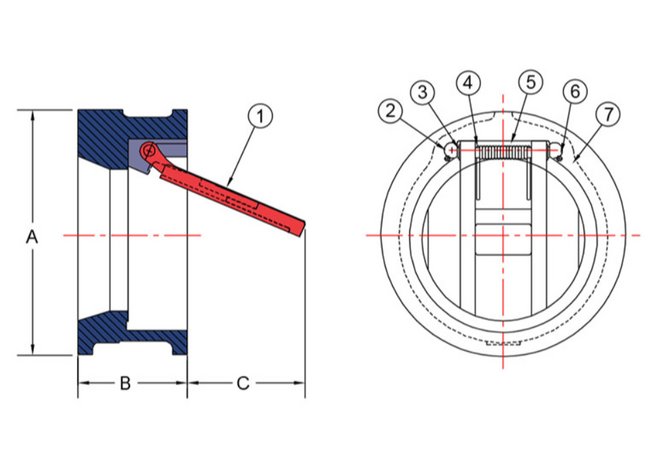

Construction Construction
Item - 1Description - DiscMaterial - A351 Gr. CF8MItem - 2Description - Set BoltMaterial - 316 Stainless SteelItem - 3Description - WasherMaterial - 316 Stainless SteelItem - 4Description - GuideMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - InsertMaterial - A351 Gr. CF8MItem - 7Description - Cast BodyMaterial - A351 Gr. CF8M
Dimensions Dimension A
5 3/8 in
Dimensions Dimension B
2 7/8 in
Dimensions Dimension C
1 1/2 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
16 lb
Dimensions Size
3 in
Dimensions Valve Flow Coefficient Cv
225
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
