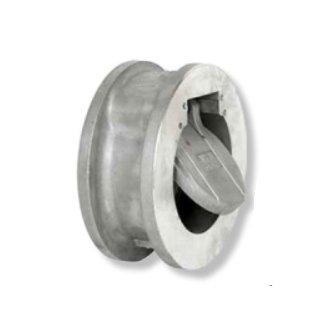

Sure Flow CSW150SSMIR 4 Inch Cast Stainless Steel Wafer Swing Check Valve
Sure Flow CSW150SSMIR 4 Inch Cast Stainless Steel Wafer Swing Check Valve
SKU:DOU-6cfe5e
Ensure quiet, efficient water flow with Sure Flow CSW150SSMIR 4 Inch Swing Check Valve. ASME Class 150 and ISO 9001:2008 certified.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Sure Flow CSW150SSMIR 4 Inch Cast Stainless Steel Wafer Swing Check Valve
$249.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW150SSMIR 4 Inch Cast Stainless Steel Wafer Swing Check Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW150SSMIR 4 Inch Cast Stainless Steel Wafer Swing Check Valve is designed for silent operation with quick closing action to prevent water hammer. Constructed with durable materials including 316 Stainless Steel disc, it ensures reliable performance under extreme conditions. With ASME Class 150 and ISO 9001:2008 certifications, this valve meets high industry standards for institutional procurement.
Product Specifications

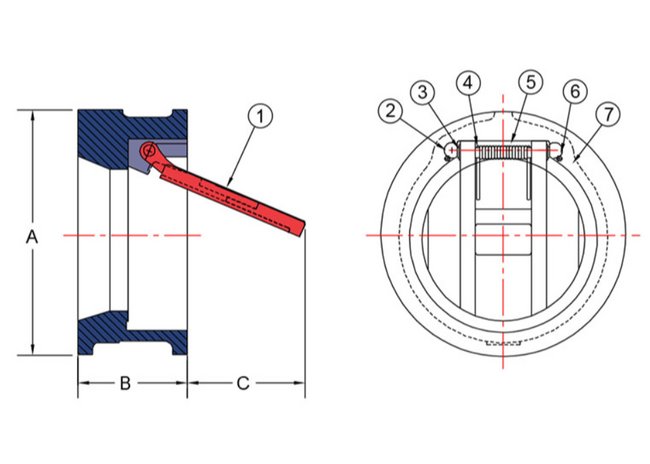

Construction Construction
Item - 1Description - DiscMaterial - A351 Gr. CF8MItem - 2Description - Set BoltMaterial - 316 Stainless SteelItem - 3Description - WasherMaterial - 316 Stainless SteelItem - 4Description - GuideMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - InsertMaterial - A351 Gr. CF8MItem - 7Description - Cast BodyMaterial - A351 Gr. CF8M
Dimensions Dimension A
6 7/8 in
Dimensions Dimension B
2 7/8 in
Dimensions Dimension C
2 3/8 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
26 lb
Dimensions Size
4 in
Dimensions Valve Flow Coefficient Cv
295
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
