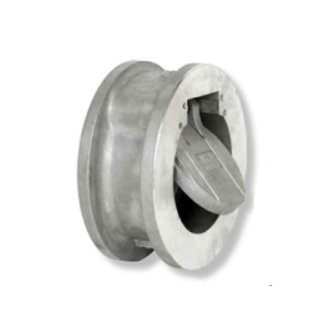

Sure Flow CSW150SSMIR 6 Inch Cast Stainless Steel Wafer Swing Check Valve
Sure Flow CSW150SSMIR 6 Inch Cast Stainless Steel Wafer Swing Check Valve
SKU:DOU-d2aa67
Ensure reliable and silent operation with Sure Flow's 6-inch Cast Stainless Steel Wafer Swing Check Valve. ASME Class 150 and ISO 9001:2008 certified.
Regular price
$567.99
Regular price
Sale price
$567.99
Unit price
per
Initiate Order
Sure Flow CSW150SSMIR 6 Inch Cast Stainless Steel Wafer Swing Check Valve
$567.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW150SSMIR 6 Inch Cast Stainless Steel Wafer Swing Check Valve
$567.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW150SSMIR 6 Inch Cast Stainless Steel Wafer Swing Check Valve sets itself apart with its silent, non-slam operation. The precision-machined disc ensures quick closure, preventing water hammer. This valve is built for durability with 316 Stainless Steel construction, meeting ASME Class 150 and ISO 9001:2008 standards. With a Cv of 700 and WOG pressure rating of 275 psi, it guarantees reliable performance under varying conditions.
Product Specifications

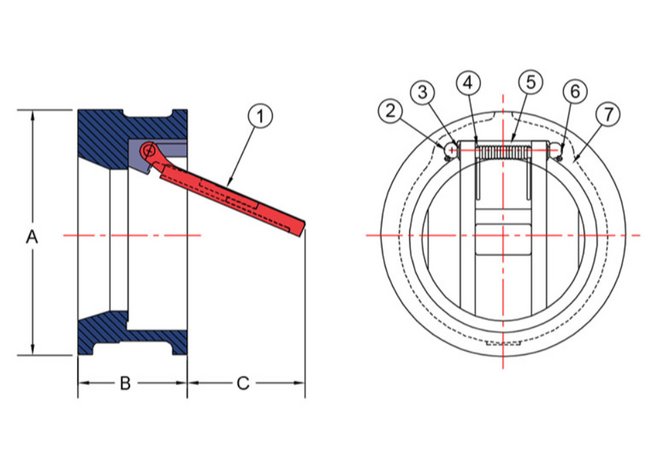

Construction Construction
Item - 1Description - DiscMaterial - A351 Gr. CF8MItem - 2Description - Set BoltMaterial - 316 Stainless SteelItem - 3Description - WasherMaterial - 316 Stainless SteelItem - 4Description - GuideMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - InsertMaterial - A351 Gr. CF8MItem - 7Description - Cast BodyMaterial - A351 Gr. CF8M
Dimensions Dimension A
8 3/4 in
Dimensions Dimension B
3 7/8 in
Dimensions Dimension C
3 3/4 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
55 lb
Dimensions Size
6 in
Dimensions Valve Flow Coefficient Cv
700
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
