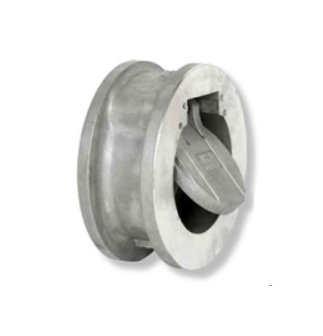

Sure Flow CSW150SSMIR 8 Inch Cast Stainless Steel Wafer Swing Check Valve
Sure Flow CSW150SSMIR 8 Inch Cast Stainless Steel Wafer Swing Check Valve
SKU:DOU-15c8a2
Ensure silent, fast, non-slam operation with the Sure Flow 8 Inch Cast Stainless Steel Wafer Swing Check Valve.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow CSW150SSMIR 8 Inch Cast Stainless Steel Wafer Swing Check Valve
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSW150SSMIR 8 Inch Cast Stainless Steel Wafer Swing Check Valve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CSW150SSMIR 8 Inch Cast Stainless Steel Wafer Swing Check Valve is designed for silent, fast, non-slam operation. Featuring a 316 Stainless Steel disc with quick closing action and spring loading for instantaneous closure, it prevents water hammer damage. The hinge pin design ensures smooth disc movement, even under extreme conditions. With an integral metal seat for a secure seal and a lifting eye hook included, this valve guarantees reliable performance in various applications.
Product Specifications

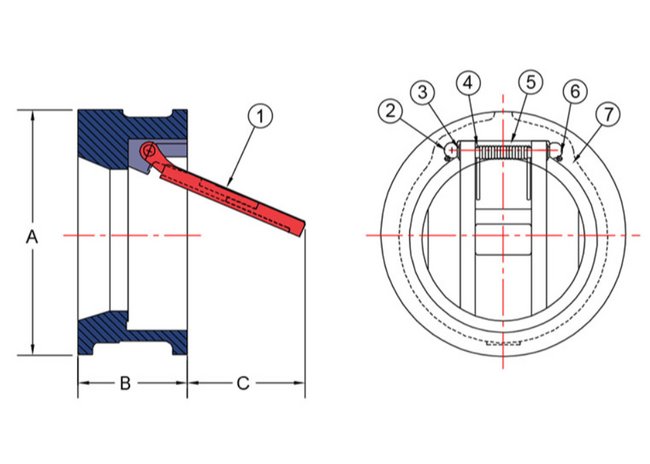

Construction Construction
Item - 1Description - DiscMaterial - A351 Gr. CF8MItem - 2Description - Set BoltMaterial - 316 Stainless SteelItem - 3Description - WasherMaterial - 316 Stainless SteelItem - 4Description - GuideMaterial - 316 Stainless SteelItem - 5Description - Torsion SpringMaterial - 316 Stainless SteelItem - 6Description - InsertMaterial - A351 Gr. CF8MItem - 7Description - Cast BodyMaterial - A351 Gr. CF8M
Dimensions Dimension A
11 in
Dimensions Dimension B
5 in
Dimensions Dimension C
4 in
Dimensions Prefix Size
0800
Dimensions Shipping Weight
103 lb
Dimensions Size
8 in
Dimensions Valve Flow Coefficient Cv
1,270
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
