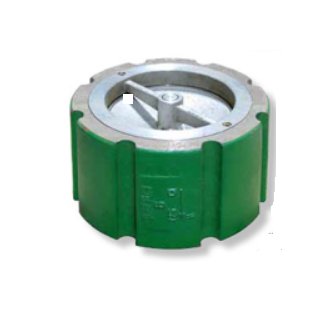

Sure Flow CW125ISC 12" Cast Iron Silent Wafer Check Valve
Sure Flow CW125ISC 12" Cast Iron Silent Wafer Check Valve
SKU:DOU-b21ce8
Prevent water hammer with Sure Flow CW125ISC 12" Cast Iron Silent Wafer Check Valve. ASME Class 125 and ISO 9001:2008 compliant.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow CW125ISC 12" Cast Iron Silent Wafer Check Valve
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow CW125ISC 12" Cast Iron Silent Wafer Check Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CW125ISC 12" Cast Iron Silent Wafer Check Valve ensures smooth operation by preventing flow reversal, eliminating water hammer and system surges. With a guided disc and versatile installation options, this valve meets ASME Class 125 and ISO 9001:2008 standards. Built with sturdy materials like cast iron and stainless steel, it offers durability and reliable service.
Product Specifications

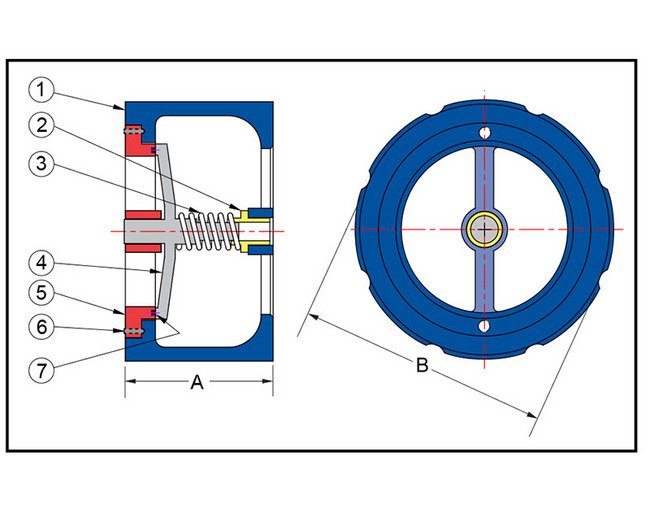

Construction Construction
Item - 1Description - Cast BodyMaterial - A126 Class BItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
11 1/4 in
Dimensions Dimension B
19 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
370 lb
Dimensions Size
12 in
Dimensions Valve Flow Coefficient Cv
1,700
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.12" size has special full lug pattern.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
