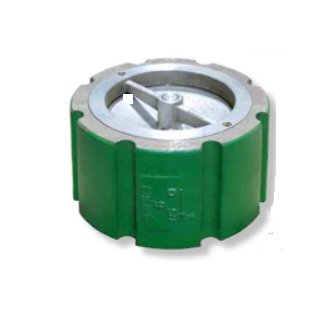

Sure Flow CW125ISC 2 Inch Cast Iron Silent Wafer Check Valve
Sure Flow CW125ISC 2 Inch Cast Iron Silent Wafer Check Valve
SKU:DOU-87042f
Prevent water hammer with the Sure Flow CW125ISC 2 Inch Silent Wafer Check Valve, offering quiet operation and reliable flow control.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Sure Flow CW125ISC 2 Inch Cast Iron Silent Wafer Check Valve
$129.99
Quantity: 1
Claim Your Seller Account
Sure Flow CW125ISC 2 Inch Cast Iron Silent Wafer Check Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CW125ISC 2 Inch Cast Iron Silent Wafer Check Valve is a reliable solution designed to prevent flow reversal, eliminating water hammer and surges. With quiet operation and a guided disc, this valve can be installed vertically or horizontally. Meeting ASME Class 125 and ISO 9001:2008 standards, it features a cast iron body, stainless steel components, and a robust construction for durability and optimal performance.
Product Specifications

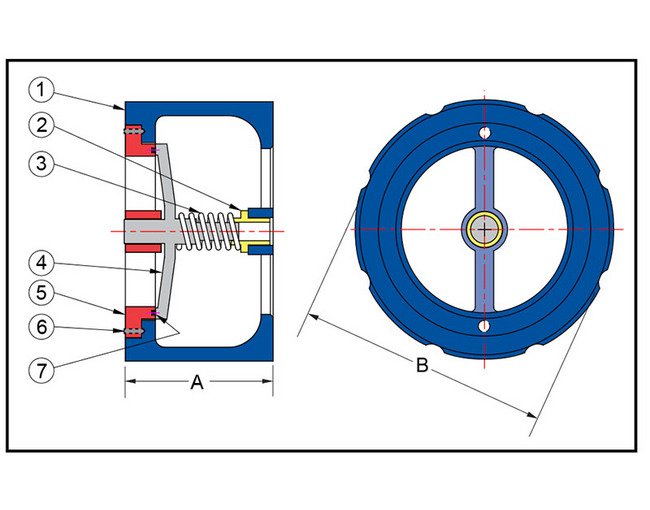

Construction Construction
Item - 1Description - Cast BodyMaterial - A126 Class BItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
2 5/8 in
Dimensions Dimension B
4 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
7 lb
Dimensions Size
2 in
Dimensions Valve Flow Coefficient Cv
60
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
