Sure Flow CW125ISC 4 Inch Cast Iron Silent Wafer Check Valve
Sure Flow CW125ISC 4 Inch Cast Iron Silent Wafer Check Valve
SKU:DOU-032aa2
Prevent flow reversal with the Sure Flow CW125ISC 4" Cast Iron Silent Wafer Check Valve. ASME Class 125 & ISO 9001:2008 compliant for reliable performance.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow CW125ISC 4 Inch Cast Iron Silent Wafer Check Valve
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow CW125ISC 4 Inch Cast Iron Silent Wafer Check Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

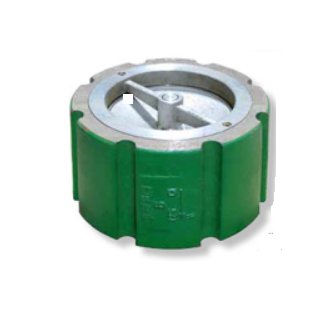

The Sure Flow CW125ISC 4 Inch Cast Iron Silent Wafer Check Valve is engineered to prevent flow reversal, eliminating water hammer and system surges. Designed for quiet operation, it features a guided disc and versatile installation options. Compliant with ASME Class 125 and ISO 9001:2008 standards, offering reliability in vertical or horizontal positions.
Product Specifications

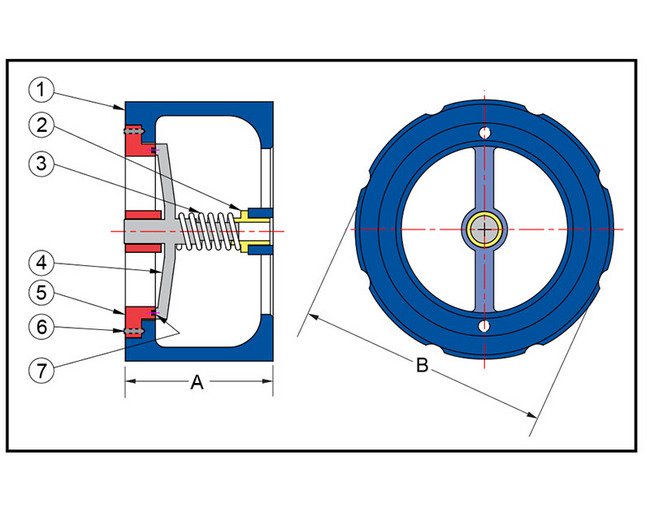

Construction Construction
Item - 1Description - Cast BodyMaterial - A126 Class BItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
4 in
Dimensions Dimension B
6 3/4 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
25 lb
Dimensions Size
4 in
Dimensions Valve Flow Coefficient Cv
215
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
