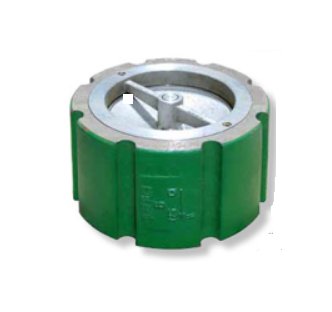

Sure Flow CW125ISC 5 Inch Cast Iron Silent Wafer Check Valve
Sure Flow CW125ISC 5 Inch Cast Iron Silent Wafer Check Valve
SKU:DOU-7f89b8
Prevent flow reversal with the Sure Flow CW125ISC 5 Inch Silent Wafer Check Valve, designed for quiet operation and ASME Class 125 compliance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow CW125ISC 5 Inch Cast Iron Silent Wafer Check Valve
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow CW125ISC 5 Inch Cast Iron Silent Wafer Check Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CW125ISC 5 Inch Cast Iron Silent Wafer Check Valve is engineered with precision to prevent flow reversal, eliminating water hammer and system surges. Featuring a guided disc and quiet operation, this valve can be installed vertically or horizontally. Compliant with ASME Class 125 and ISO 9001:2008 standards, it ensures reliable performance in various applications. Constructed with high-quality materials for durability and efficiency, this valve is ideal for institutional and government procurement needs.
Product Specifications
Construction Construction

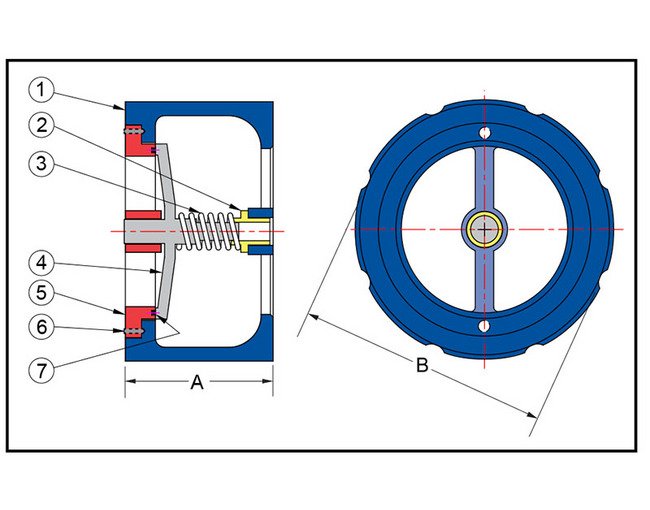

Item - 1Description - Cast BodyMaterial - A126 Class BItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
4 5/8 in
Dimensions Dimension B
7 5/8 in
Dimensions Prefix Size
0500
Dimensions Shipping Weight
32 lb
Dimensions Size
5 in
Dimensions Valve Flow Coefficient Cv
340
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
