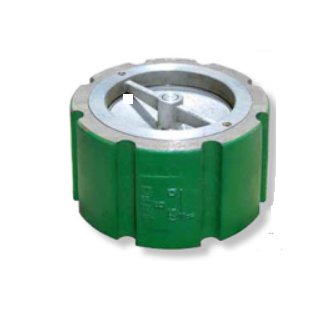

Sure Flow CW125ISC 6-Inch Cast Iron Silent Wafer Check Valve
Sure Flow CW125ISC 6-Inch Cast Iron Silent Wafer Check Valve
SKU:DOU-7bf3d0
Prevent flow reversal effectively with the Sure Flow CW125ISC 6-Inch Cast Iron Silent Wafer Check Valve. ASME Class 125 & ISO 9001:2008 certified.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Sure Flow CW125ISC 6-Inch Cast Iron Silent Wafer Check Valve
$259.99
Quantity: 1
Claim Your Seller Account
Sure Flow CW125ISC 6-Inch Cast Iron Silent Wafer Check Valve
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CW125ISC 6-Inch Cast Iron Silent Wafer Check Valve is engineered to prevent flow reversal, eliminating water hammer and system surges. Featuring a guided disc for quiet operation, this valve can be vertically or horizontally installed. With industry-leading ASME Class 125 and ISO 9001:2008 certifications, it ensures reliability and performance. Constructed with durable materials and optional resilient seating, it meets the highest standards for institutional and government procurement.
Product Specifications

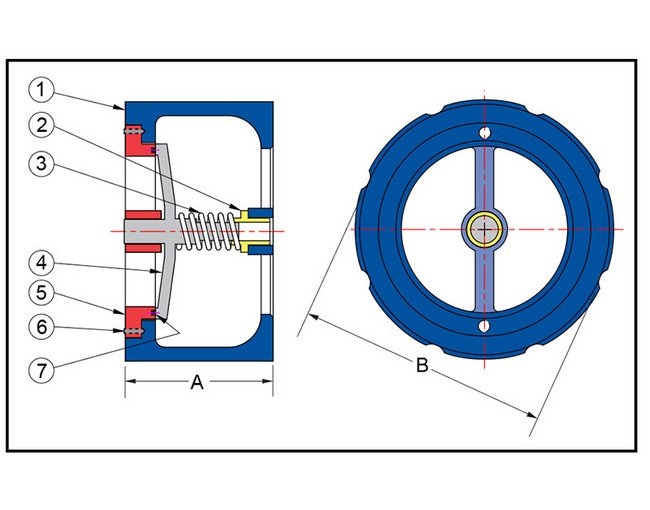

Construction Construction
Item - 1Description - Cast BodyMaterial - A126 Class BItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
5 1/2 in
Dimensions Dimension B
8 5/8 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
56 lb
Dimensions Size
6 in
Dimensions Valve Flow Coefficient Cv
410
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
