Sure Flow CW125ISC 8 Inch Cast Iron Silent Wafer Check Valve
Sure Flow CW125ISC 8 Inch Cast Iron Silent Wafer Check Valve
SKU:DOU-0acdbc
Prevent flow reversal with the Sure Flow CW125ISC 8 Inch Cast Iron Silent Wafer Check Valve. ASME Class 125 and ISO 9001:2008 certified for reliable performance.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Sure Flow CW125ISC 8 Inch Cast Iron Silent Wafer Check Valve
$259.99
Quantity: 1
Claim Your Seller Account
Sure Flow CW125ISC 8 Inch Cast Iron Silent Wafer Check Valve
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CW125ISC 8 Inch Cast Iron Silent Wafer Check Valve is a reliable solution designed to prevent flow reversal, eliminating water hammer and system surges. It offers quiet operation, a guided disc, and can be installed both vertically and horizontally. With industry-standard construction and adherence to ASME Class 125 and ISO 9001:2008 certifications, this valve ensures optimal performance under pressures up to 200 psi at 150°F. The cast iron body, stainless steel components, and optional resilient seating make it a durable choice for various applications.
Product Specifications

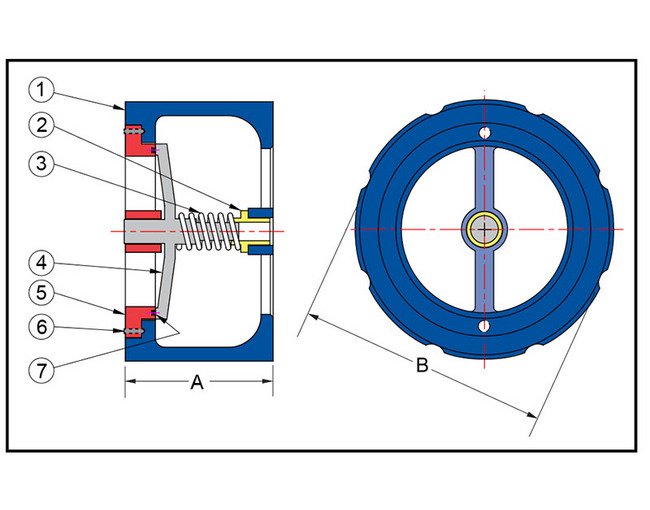

Construction Construction
Item - 1Description - Cast BodyMaterial - A126 Class BItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
6 1/2 in
Dimensions Dimension B
10 3/4 in
Dimensions Prefix Size
0800
Dimensions Shipping Weight
100 lb
Dimensions Size
8 in
Dimensions Valve Flow Coefficient Cv
720
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
