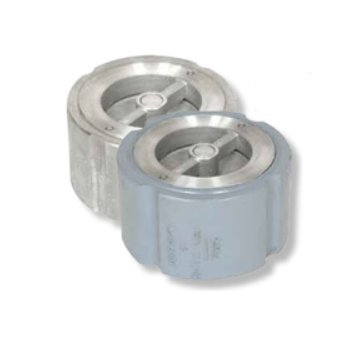

Sure Flow CW150 10" Cast Steel Silent Wafer Check Valve

Name: Sure Flow CW150 10" Cast Steel Silent Wafer Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-7514ec
Price: 549.99 USD
Availability: OutOfStock

SKU:DOU-7514ec

Prevent flow reversal with the Sure Flow CW150 10" Cast Steel Silent Wafer Check Valve. ASME Class 150 & ISO 9001:2008 compliant.

$549.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow CW150 10" Cast Steel Silent Wafer Check Valve is a top-of-the-line solution designed to prevent flow reversal effectively, eliminating water hammer and system surges. Featuring guided disc technology, quiet operation, and the ability to be installed in both vertical and horizontal positions, this valve is reliable and efficient. Compliant with ASME Class 150 and ISO 9001:2008 standards, ensuring industry-leading quality and performance.

Product Specifications

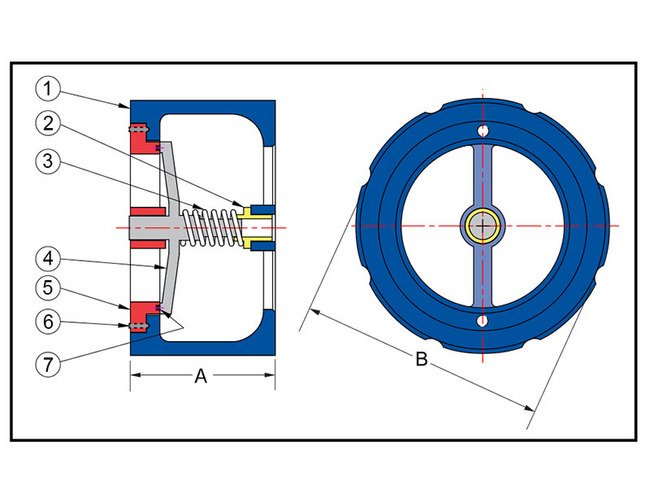

Construction Construction

Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N

Dimensions Dimension A

8 1/4 in

Dimensions Dimension B

13 1/8 in

Dimensions Prefix Size

1000

Dimensions Shipping Weight

140 lb

Dimensions Size

10 in

Dimensions Valve Flow Coefficient Cv

1,200

Industry Standardscertifications Industry Standardscertification

American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

285 psi

Specifications Material

Cast Steel

Sure Flow CW150 10" Cast Steel Silent Wafer Check Valve
