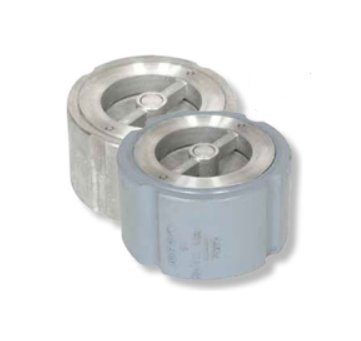

Sure Flow CW150 12 Inch Cast Steel Silent Wafer Check Valve
Sure Flow CW150 12 Inch Cast Steel Silent Wafer Check Valve
SKU:DOU-2cefd2
Prevent flow reversal and water hammer with Sure Flow CW150 12" Cast Steel Silent Wafer Check Valve. ASME Class 150 and ISO 9001:2008 compliant.
Regular price
$599.00
Regular price
Sale price
$599.00
Unit price
per
Initiate Order
Sure Flow CW150 12 Inch Cast Steel Silent Wafer Check Valve
$599.00
Quantity: 1
Claim Your Seller Account
Sure Flow CW150 12 Inch Cast Steel Silent Wafer Check Valve
$599.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CW150 12 Inch Cast Steel Silent Wafer Check Valve is a premium solution for preventing flow reversal, water hammer, and system surges. Designed to close swiftly and quietly, it offers guided disc technology for reliable operation in both vertical and horizontal orientations. With a robust construction meeting ASME Class 150 and ISO 9001:2008 standards, this valve ensures durability and performance. Ideal for institutional and government applications, it boasts a Valve Flow Coefficient of 1,700 and can withstand pressures up to 285 psi at 100°F. Install with confidence, backed by industry-leading certifications and optional resilient seating materials.
Product Specifications

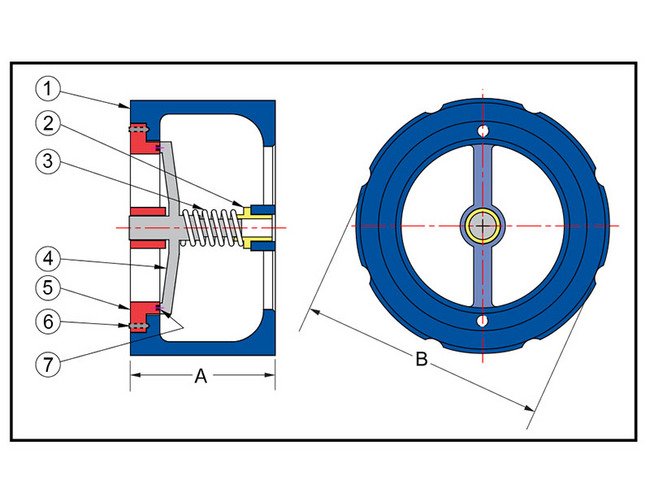

Construction Construction
Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
11 1/4 in
Dimensions Dimension B
19 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
370 lb
Dimensions Size
12 in
Dimensions Valve Flow Coefficient Cv
1,700
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.12" size has special full lug pattern.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Specifications Material
Cast Steel
