Sure Flow CW150 3 Inch Cast Steel Silent Wafer Check Valve
Sure Flow CW150 3 Inch Cast Steel Silent Wafer Check Valve
SKU:DOU-248bdf
Prevent flow reversal with Sure Flow CW150 3in Cast Steel Silent Wafer Check Valve. ASME Class 150 & ISO 9001:2008 compliant.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow CW150 3 Inch Cast Steel Silent Wafer Check Valve
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow CW150 3 Inch Cast Steel Silent Wafer Check Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

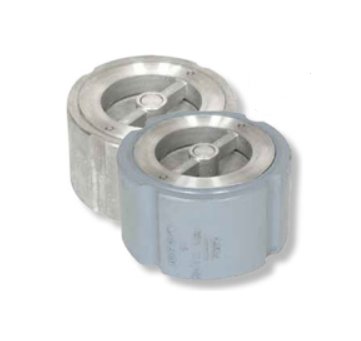

The Sure Flow CW150 3 Inch Cast Steel Silent Wafer Check Valve is designed to prevent flow reversal, eliminating water hammer and system surges. With quiet operation and a guided disc, it can be installed vertically or horizontally. Meeting ASME Class 150 and ISO 9001:2008 standards, this valve is constructed with durable materials for reliable performance.
Product Specifications
Construction Construction

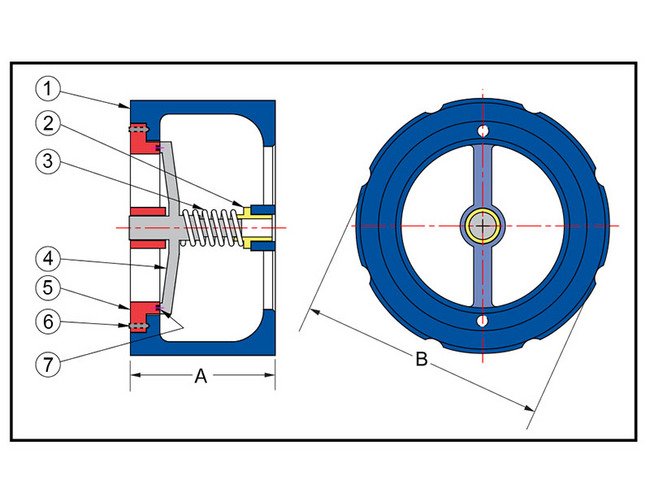

Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
3 1/8 in
Dimensions Dimension B
5 1/4 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
15 lb
Dimensions Size
3 in
Dimensions Valve Flow Coefficient Cv
125
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Specifications Material
Cast Steel
