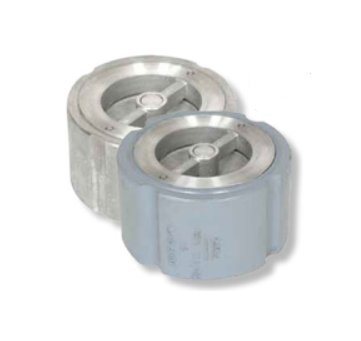

Sure Flow CW150 6 Inch Cast Steel Silent Wafer Check Valve

Name: Sure Flow CW150 6 Inch Cast Steel Silent Wafer Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-4b41cc
Price: 349.99 USD
Availability: OutOfStock

SKU:DOU-4b41cc

Prevent flow reversal with the durable Sure Flow CW150 6 Inch Cast Steel Silent Wafer Check Valve. ASME Class 150 and ISO 9001:2008 compliant.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow CW150 6 Inch Cast Steel Silent Wafer Check Valve is a reliable solution designed to prevent flow reversal, water hammer, and system surges. Featuring quiet operation and a guided disc, this valve can be installed vertically or horizontally. With a durable construction meeting ASME Class 150 and ISO 9001:2008 standards, it ensures reliable performance in various applications. Optional resilient seating materials like Buna-N or Fluorocarbon further enhance its versatility.

Product Specifications

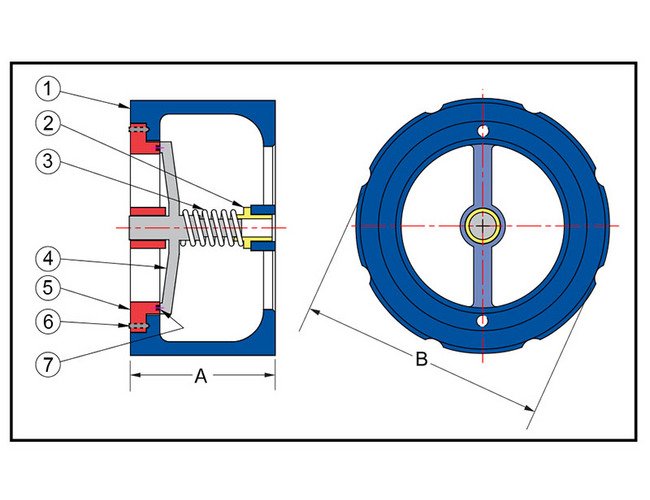

Construction Construction

Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N

Dimensions Dimension A

5 1/2 in

Dimensions Dimension B

8 5/8 in

Dimensions Prefix Size

0600

Dimensions Shipping Weight

56 lb

Dimensions Size

6 in

Dimensions Valve Flow Coefficient Cv

410

Industry Standardscertifications Industry Standardscertification

American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

285 psi

Specifications Material

Cast Steel

Sure Flow CW150 6 Inch Cast Steel Silent Wafer Check Valve
