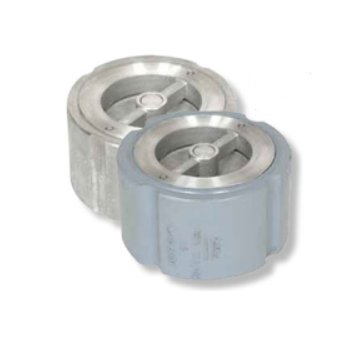

Sure Flow CW150 8-Inch Cast Steel Silent Wafer Check Valve
Sure Flow CW150 8-Inch Cast Steel Silent Wafer Check Valve
SKU:DOU-6c0177
Ensure smooth operation and prevent flow reversal with the Sure Flow CW150 8-Inch Cast Steel Silent Wafer Check Valve, meeting ASME Class 150 and ISO 9001:2008 standards.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Sure Flow CW150 8-Inch Cast Steel Silent Wafer Check Valve
$699.99
Quantity: 1
Claim Your Seller Account
Sure Flow CW150 8-Inch Cast Steel Silent Wafer Check Valve
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CW150 8-Inch Cast Steel Silent Wafer Check Valve is a reliable solution designed to prevent flow reversal, water hammer, and system surges. Featuring a guided disc for smooth operation, it can be installed vertically or horizontally. Compliant with ASME Class 150 and ISO 9001:2008 standards, this valve offers quiet performance and durability. Constructed with high-quality materials including A216 Gr. WCB and A351 Gr. CF8M, it ensures efficient operation in various applications. Consult factory for optional constructions and enjoy the peace of mind with its industry-approved design.
Product Specifications

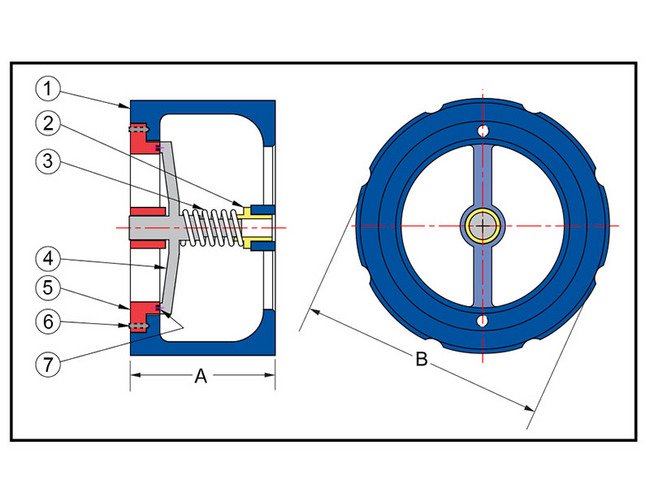

Construction Construction
Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
6 1/2 in
Dimensions Dimension B
10 3/4 in
Dimensions Prefix Size
0800
Dimensions Shipping Weight
100 lb
Dimensions Size
8 in
Dimensions Valve Flow Coefficient Cv
720
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Specifications Material
Cast Steel
