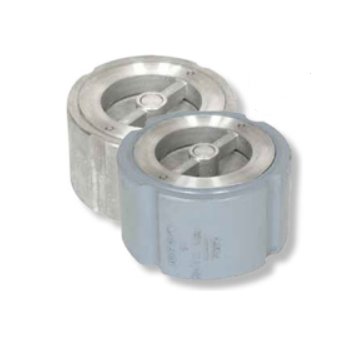

Sure Flow CW150SS 10 Inch Stainless Steel Silent Wafer Check Valve
Sure Flow CW150SS 10 Inch Stainless Steel Silent Wafer Check Valve
SKU:DOU-06957a
Prevent flow reversal with the Sure Flow CW150SS Check Valve, featuring ASME Class 150 and ISO 9001:2008 certifications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow CW150SS 10 Inch Stainless Steel Silent Wafer Check Valve
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow CW150SS 10 Inch Stainless Steel Silent Wafer Check Valve
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CW150SS 10 Inch Stainless Steel Silent Wafer Check Valve is designed to prevent flow reversal, eliminating water hammer and system surges. With quiet operation and a guided disc, this valve can be installed vertically or horizontally. Constructed with ASME Class 150 and ISO 9001:2008 certified materials, it offers reliable performance in water, oil, and gas applications.
Product Specifications

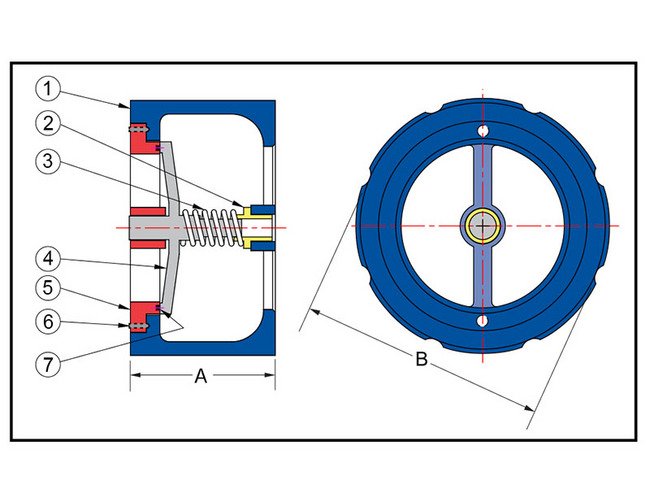

Construction Construction
Item - 1Description - Cast Body - StainlessMaterial - A351 Gr. CF8MItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
8 1/4 in
Dimensions Dimension B
13 1/8 in
Dimensions Prefix Size
1000
Dimensions Shipping Weight
140 lb
Dimensions Size
10 in
Dimensions Valve Flow Coefficient Cv
1,200
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
