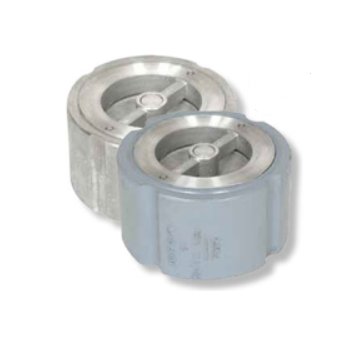

The Sure Flow CW150SS 12" Cast Stainless Steel Silent Wafer Check Valve is designed to prevent flow reversal, eliminating water hammer and system surges. With ASME Class 150 and ISO 9001:2008 certifications, it offers quiet operation, guided disc, and can be installed vertically or horizontally. Constructed with high-grade materials, it ensures reliable performance under pressures up to 275 psi.
Product Specifications

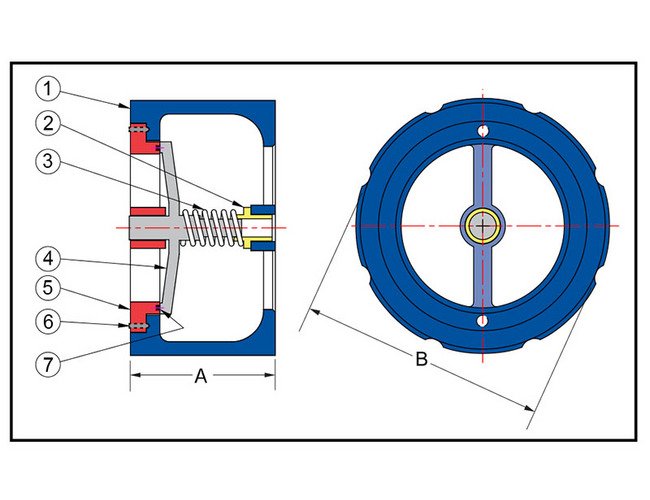

Construction Construction
Item - 1Description - Cast Body - StainlessMaterial - A351 Gr. CF8MItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
11 1/4 in
Dimensions Dimension B
19 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
370 lb
Dimensions Size
12 in
Dimensions Valve Flow Coefficient Cv
1,700
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.12" size has special full lug pattern.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
