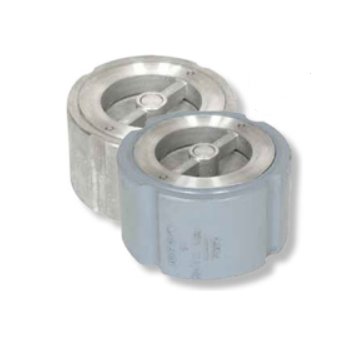

Sure Flow CW150SS 2 1/2 Inch Cast Stainless Steel Silent Wafer Check Valve

Name: Sure Flow CW150SS 2 1/2 Inch Cast Stainless Steel Silent Wafer Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-551216
Price: 259.99 USD
Availability: OutOfStock

SKU:DOU-551216

Prevent flow reversal with the Sure Flow CW150SS 2 1/2 Inch Cast Stainless Steel Silent Wafer Check Valve, featuring ASME Class 150 and ISO 9001:2008 certifications.

$259.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow CW150SS 2 1/2 Inch Cast Stainless Steel Silent Wafer Check Valve is engineered to prevent flow reversal, eliminating water hammer and system surges. With ASME Class 150 and ISO 9001:2008 certifications, this valve offers quiet operation, guided disc, and versatile installation options. Constructed with high-quality materials, it ensures reliability and optimal performance in various applications.

Product Specifications

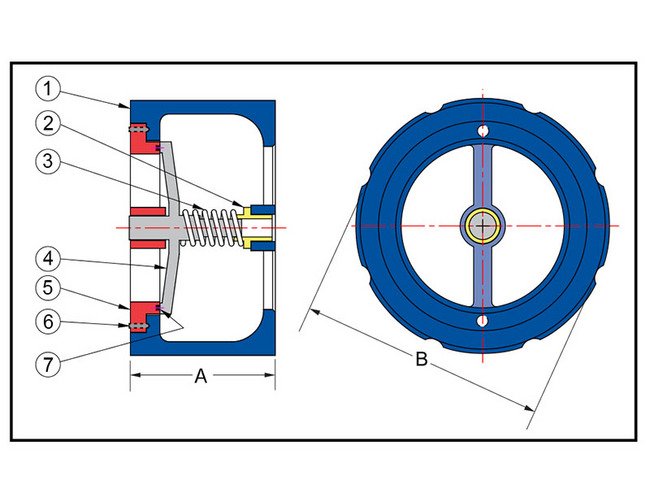

Construction Construction

Item - 1Description - Cast Body - StainlessMaterial - A351 Gr. CF8MItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N

Dimensions Dimension A

2 7/8 in

Dimensions Dimension B

4 3/4 in

Dimensions Prefix Size

0250

Dimensions Shipping Weight

9 lb

Dimensions Size

2 1/2 in

Dimensions Valve Flow Coefficient Cv

Industry Standardscertifications Industry Standardscertification

American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

275 psi

Specifications Material

Cast Stainless Steel

Sure Flow CW150SS 2 1/2 Inch Cast Stainless Steel Silent Wafer Check Valve
