Sure Flow CW150SS 2-Inch Cast Stainless Steel Silent Wafer Check Valve
Sure Flow CW150SS 2-Inch Cast Stainless Steel Silent Wafer Check Valve
SKU:DOU-78dbca
Prevents flow reversal and water hammer with quiet operation. Meets ASME Class 150 and ISO 9001:2008 standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Sure Flow CW150SS 2-Inch Cast Stainless Steel Silent Wafer Check Valve
$129.99
Quantity: 1
Claim Your Seller Account
Sure Flow CW150SS 2-Inch Cast Stainless Steel Silent Wafer Check Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CW150SS 2-Inch Cast Stainless Steel Silent Wafer Check Valve ensures smooth operation by closing before the pump stops, preventing flow reversal and eliminating water hammer. Designed for vertical or horizontal installation, it features a guided disc, quiet operation, and meets ASME Class 150 and ISO 9001:2008 standards. With robust construction and a Valve Flow Coefficient of 60, it offers reliable performance in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

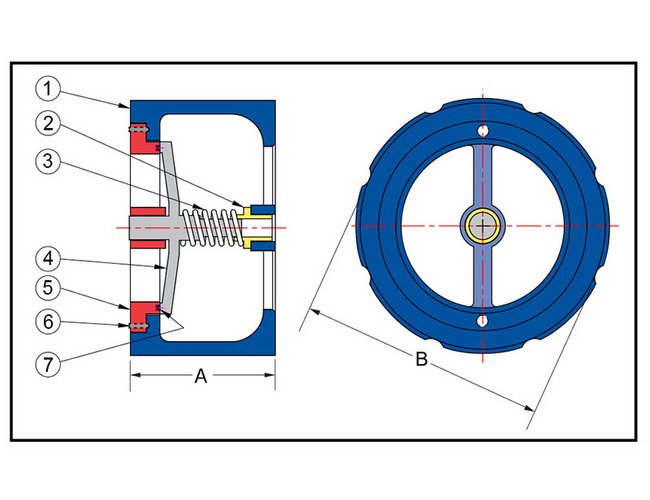

Construction Construction
Item - 1Description - Cast Body - StainlessMaterial - A351 Gr. CF8MItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
2 5/8 in
Dimensions Dimension B
4 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
7 lb
Dimensions Size
2 in
Dimensions Valve Flow Coefficient Cv
60
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
