Sure Flow CW150SS 6 Inch Cast Stainless Steel Silent Wafer Check Valve
Sure Flow CW150SS 6 Inch Cast Stainless Steel Silent Wafer Check Valve
SKU:DOU-019d47
Sure Flow CW150SS 6 Inch Silent Wafer Check Valve - ASME Class 150, ISO 9001:2008 Certified with Optional Resilient Seating
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow CW150SS 6 Inch Cast Stainless Steel Silent Wafer Check Valve
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow CW150SS 6 Inch Cast Stainless Steel Silent Wafer Check Valve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CW150SS 6 Inch Cast Stainless Steel Silent Wafer Check Valve is a top-of-the-line solution for preventing flow reversal, water hammer, and system surges in both vertical and horizontal installations. Designed with precision and durability, this valve features a guided disc for quiet operation and is ASME Class 150 and ISO 9001:2008 certified. Constructed with high-quality materials like A351 Gr. CF8M stainless steel, this valve ensures reliable performance under pressures up to 275 psi. Optional resilient seating available for enhanced functionality. Consult with the factory for custom construction options.
Product Specifications
Construction Construction

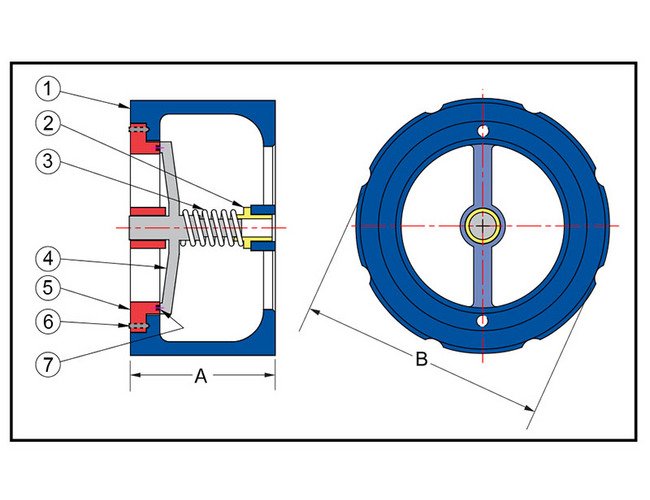

Item - 1Description - Cast Body - StainlessMaterial - A351 Gr. CF8MItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
5 1/2 in
Dimensions Dimension B
8 5/8 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
56 lb
Dimensions Size
6 in
Dimensions Valve Flow Coefficient Cv
410
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
