Sure Flow CXF125IV 12" Ductile Iron Swing Check Valve
Sure Flow CXF125IV 12" Ductile Iron Swing Check Valve
SKU:DOU-e850df
Reliable Sure Flow 12" Ductile Iron Swing Check Valve for municipal and industrial use, ASME Class 125 compliant.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow CXF125IV 12" Ductile Iron Swing Check Valve
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow CXF125IV 12" Ductile Iron Swing Check Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

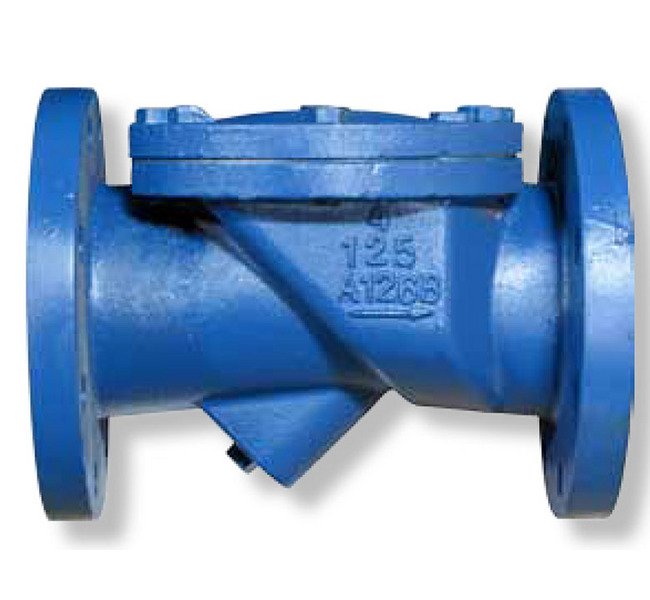

The Sure Flow CXF125IV 12-inch Ductile Iron Elastic Swing Check Valve with Flanged End Connections is a reliable choice for municipal and industrial applications. This valve boasts an ASME Class 125 flange, epoxy-coated internal body, and a one-piece molded disc with steel reinforcement for secure closure. With 100% uninterrupted flow in the open position and easy repairability without valve removal, this valve offers both efficiency and convenience.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Optional: A Backflow Rod can be installed and used for draining or pump priming. This option is a safe and effective way to manually activate the valve.
Construction Construction

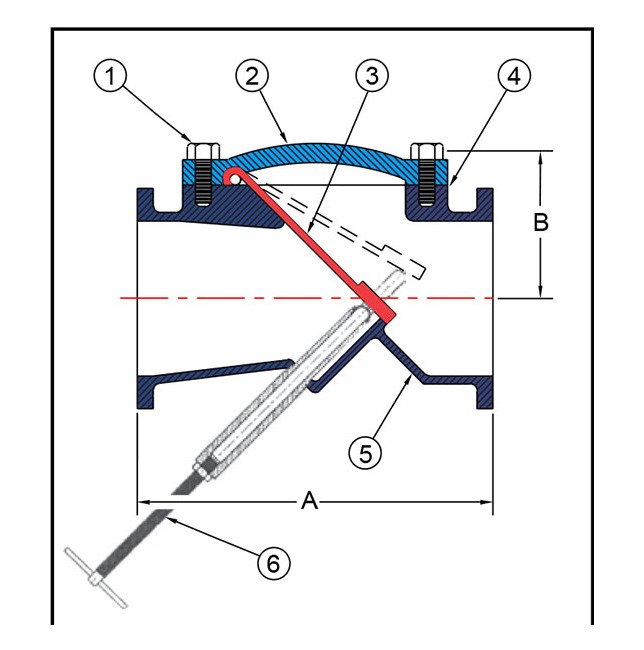

Item - 1Description - Cover BoltsMaterial - Alloy Steel SAE Grade 5Item - 2Description - CoverMaterial - A536 60-45-12 Ductile IronItem - 3Description - DiscMaterial - Buna-N with Steel & Fabric ReinforcementItem - 4Description - GasketMaterial - Lexide NK-511 (non-asbestos)Item - 5Description - Cast BodyMaterial - A536 60-45-12 Ductile IronItem - 6Description - Backflow Rod (Optional)Material - A582, B505 Brass
Dimensions Dimension A
27 1/2 in
Dimensions Dimension B
11 1/2 in
Dimensions Drain Size
2 1/2 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
710 lb
Dimensions Size
12 in
Dimensions Valve Flow Coefficient Cv
4,600
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
