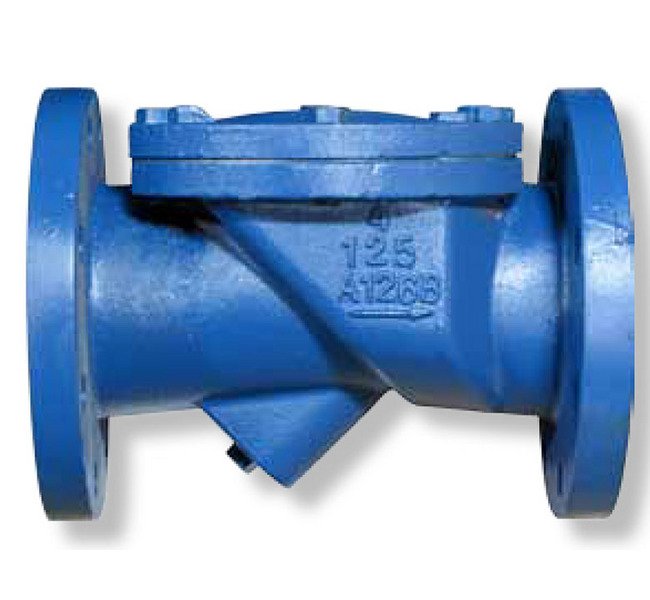

Sure Flow CXF125IV 14" Ductile Iron Elastic Swing Check Valve with Flanged End Connections
Sure Flow CXF125IV 14" Ductile Iron Elastic Swing Check Valve with Flanged End Connections
SKU:DOU-dcf24d
Reliable Sure Flow 14" Elastic Swing Check Valve for municipal and industrial use. ASME Class 125 & ISO 9001:2008 compliant.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Sure Flow CXF125IV 14" Ductile Iron Elastic Swing Check Valve with Flanged End Connections
$1,299.99
Quantity: 1
Claim Your Seller Account
Sure Flow CXF125IV 14" Ductile Iron Elastic Swing Check Valve with Flanged End Connections
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CXF125IV 14-inch Ductile Iron Elastic Swing Check Valve with Flanged End Connections is ideal for municipal and industrial applications. Compliant with ASME Class 125 and ISO 9001:2008 standards, the valve features an epoxy-coated internal body and a one-piece molded disc with steel reinforcement for reliable closure. With a valve flow coefficient of 6,600, it ensures 100% uninterrupted flow in the open position. The optional backflow rod allows for convenient draining or pump priming without valve removal.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Optional: A Backflow Rod can be installed and used for draining or pump priming. This option is a safe and effective way to manually activate the valve.
Construction Construction

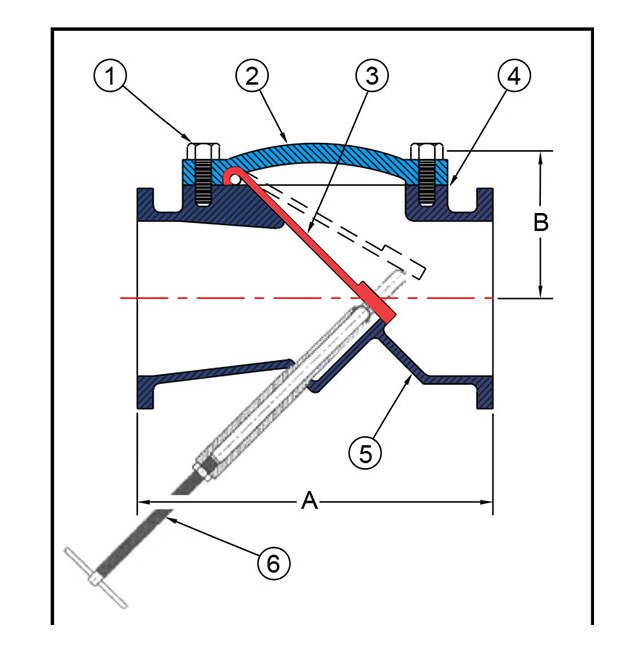

Item - 1Description - Cover BoltsMaterial - Alloy Steel SAE Grade 5Item - 2Description - CoverMaterial - A536 60-45-12 Ductile IronItem - 3Description - DiscMaterial - Buna-N with Steel & Fabric ReinforcementItem - 4Description - GasketMaterial - Lexide NK-511 (non-asbestos)Item - 5Description - Cast BodyMaterial - A536 60-45-12 Ductile IronItem - 6Description - Backflow Rod (Optional)Material - A582, B505 Brass
Dimensions Dimension A
31 in
Dimensions Dimension B
13 1/2 in
Dimensions Drain Size
2 1/2 in
Dimensions Prefix Size
1400
Dimensions Shipping Weight
860 lb
Dimensions Size
14 in
Dimensions Valve Flow Coefficient Cv
6,600
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Ductile Iron
