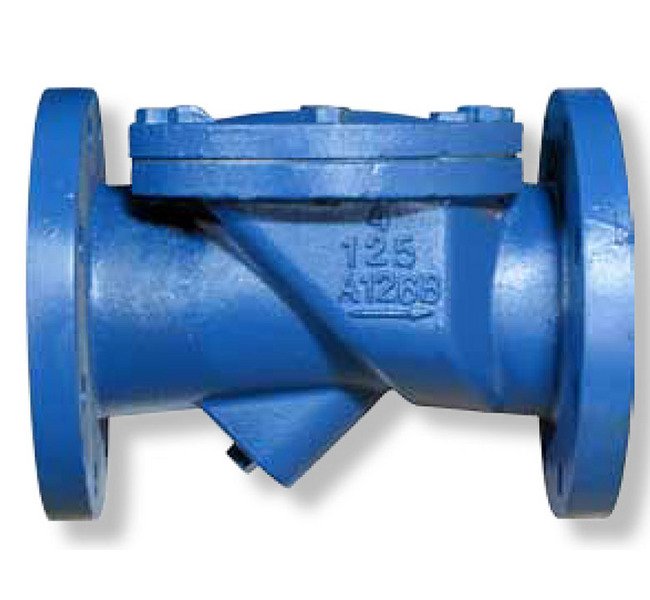

Sure Flow CXF125IV 2.5in Ductile Iron Swing Check Valve
Sure Flow CXF125IV 2.5in Ductile Iron Swing Check Valve
SKU:DOU-439777
Reliable Sure Flow 2.5in Elastic Swing Check Valve for municipal and industrial use. Durable and efficient design.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow CXF125IV 2.5in Ductile Iron Swing Check Valve
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow CXF125IV 2.5in Ductile Iron Swing Check Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CXF125IV 2 1/2 Inch Ductile Iron Elastic Swing Check Valve with Flanged End Connections is a reliable choice for municipal and industrial applications. Featuring a durable epoxy-coated ductile iron body and ASME Class 125 flanges, this valve ensures secure closure with its one-piece molded disc and steel-reinforced insert. With a 100% uninterrupted flow in the open position and easy repairability without valve removal, it offers convenience and efficiency in operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Optional: A Backflow Rod can be installed and used for draining or pump priming. This option is a safe and effective way to manually activate the valve.

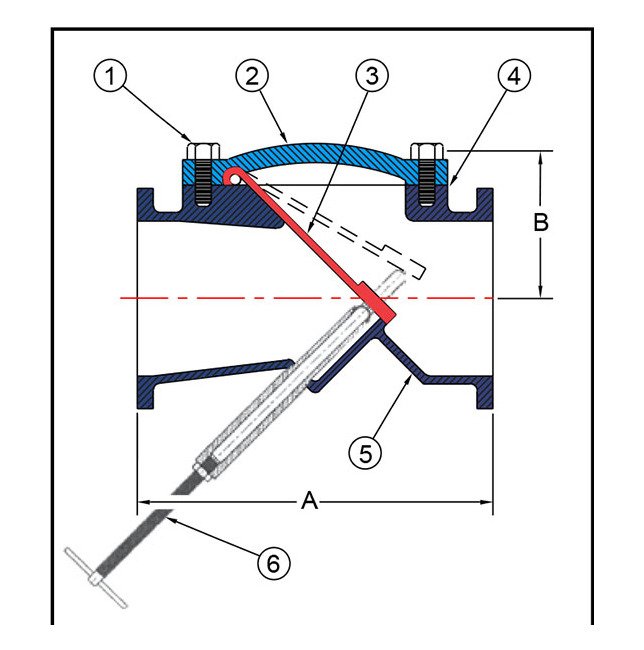

Construction Construction
Item - 1Description - Cover BoltsMaterial - Alloy Steel SAE Grade 5Item - 2Description - CoverMaterial - A536 60-45-12 Ductile IronItem - 3Description - DiscMaterial - Buna-N with Steel & Fabric ReinforcementItem - 4Description - GasketMaterial - Lexide NK-511 (non-asbestos)Item - 5Description - Cast BodyMaterial - A536 60-45-12 Ductile IronItem - 6Description - Backflow Rod (Optional)Material - A582, B505 Brass
Dimensions Dimension A
8 1/2 in
Dimensions Dimension B
3 3/8 in
Dimensions Drain Size
3/4 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
38 lb
Dimensions Size
2 1/2 in
Dimensions Valve Flow Coefficient Cv
155
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
