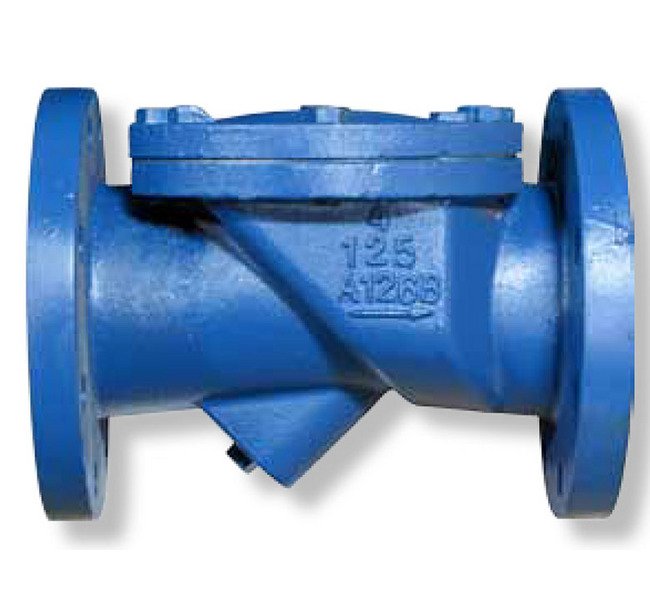

Sure Flow CXF125IV 2-inch Ductile Iron Swing Check Valve
Sure Flow CXF125IV 2-inch Ductile Iron Swing Check Valve
SKU:DOU-c3fee8
Ensure seamless flow control with the Sure Flow Ductile Iron Swing Check Valve. ASME Class 125 compliant, perfect for municipalities and industries.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow CXF125IV 2-inch Ductile Iron Swing Check Valve
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow CXF125IV 2-inch Ductile Iron Swing Check Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CXF125IV Ductile Iron Elastic Swing Check Valve with Flanged End Connections is a resilient choice for both municipal and industrial applications. This valve, compliant with ASME Class 125 and ISO 9001:2008 standards, features an epoxy-coated ductile iron body for durability. The one-piece molded disc with steel reinforcement ensures reliable closure, while allowing 100% uninterrupted flow in the open position. With convenient repairability without valve removal and optional backflow rod installation for added functionality, this valve offers both performance and flexibility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Optional: A Backflow Rod can be installed and used for draining or pump priming. This option is a safe and effective way to manually activate the valve.

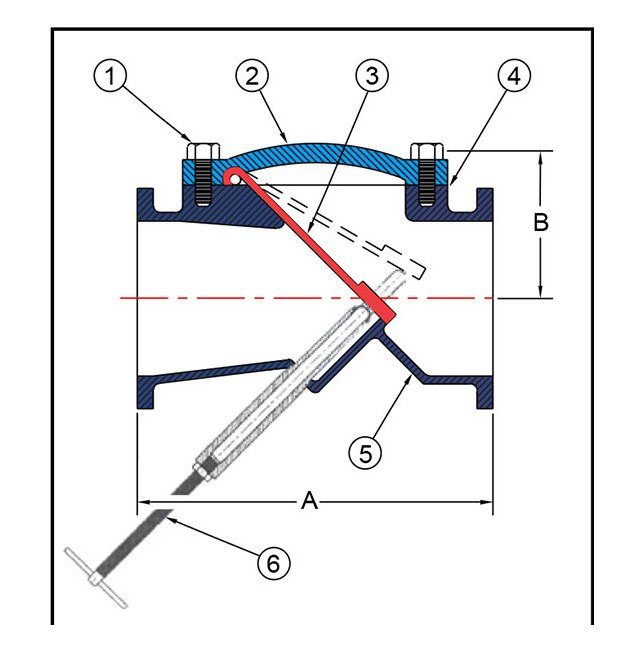

Construction Construction
Item - 1Description - Cover BoltsMaterial - Alloy Steel SAE Grade 5Item - 2Description - CoverMaterial - A536 60-45-12 Ductile IronItem - 3Description - DiscMaterial - Buna-N with Steel & Fabric ReinforcementItem - 4Description - GasketMaterial - Lexide NK-511 (non-asbestos)Item - 5Description - Cast BodyMaterial - A536 60-45-12 Ductile IronItem - 6Description - Backflow Rod (Optional)Material - A582, B505 Brass
Dimensions Dimension A
8 in
Dimensions Dimension B
3 3/8 in
Dimensions Drain Size
3/4 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
30 lb
Dimensions Size
2 in
Dimensions Valve Flow Coefficient Cv
95
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
