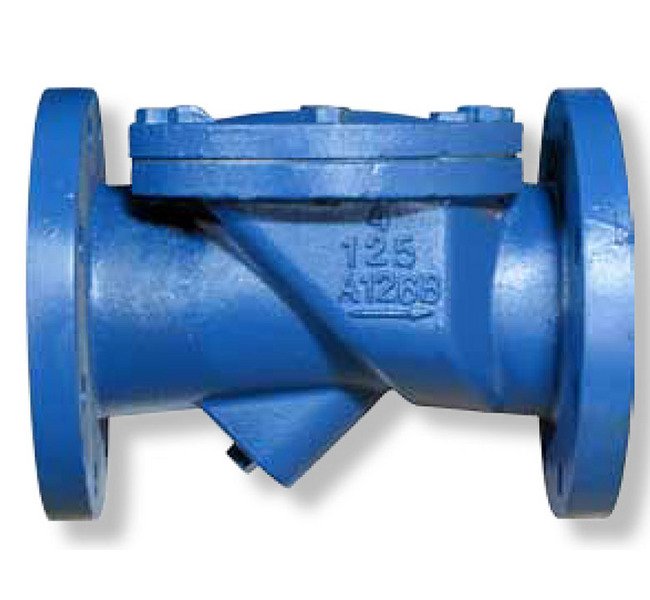

Sure Flow CXF125IV 20 Inch Ductile Iron Elastic Swing Check Valve
Sure Flow CXF125IV 20 Inch Ductile Iron Elastic Swing Check Valve
SKU:DOU-dc85a8
Reliable Sure Flow CXF125IV 20 Inch Ductile Iron Swing Check Valve for municipal and industrial use with ASME Class 125 flanges and 150 psi pressure rating.
Regular price
$1,329.99
Regular price
Sale price
$1,329.99
Unit price
per
Initiate Order
Sure Flow CXF125IV 20 Inch Ductile Iron Elastic Swing Check Valve
$1,329.99
Quantity: 1
Claim Your Seller Account
Sure Flow CXF125IV 20 Inch Ductile Iron Elastic Swing Check Valve
$1,329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CXF125IV 20 Inch Ductile Iron Elastic Swing Check Valve with Flanged End Connections is a robust solution ideal for municipal and industrial applications. Constructed with ASME Class 125 flanges and epoxy-coated internals, this valve features a one-piece molded disc with steel reinforcement for secure closure. It allows 100% uninterrupted flow when open and enables easy disc repairs without valve removal. With a Cv of 14,200 and pressure rating of 150 psi at 150°F, this valve ensures reliable performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Optional: A Backflow Rod can be installed and used for draining or pump priming. This option is a safe and effective way to manually activate the valve.
Construction Construction

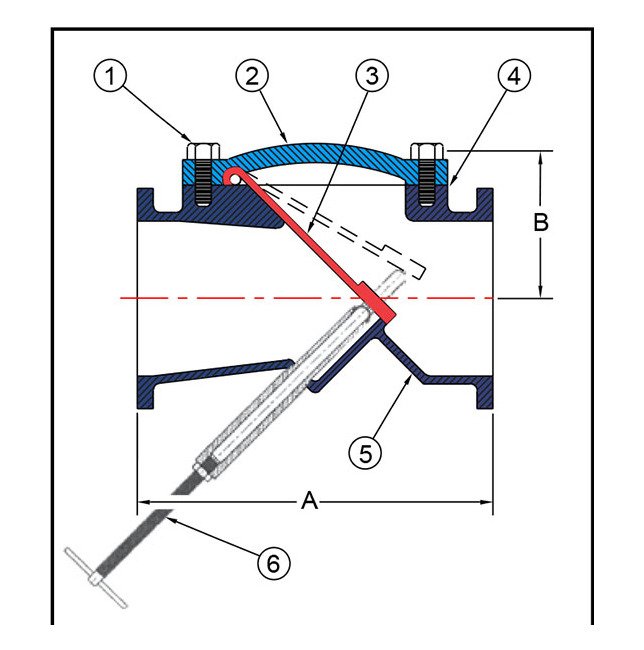

Item - 1Description - Cover BoltsMaterial - Alloy Steel SAE Grade 5Item - 2Description - CoverMaterial - A536 60-45-12 Ductile IronItem - 3Description - DiscMaterial - Buna-N with Steel & Fabric ReinforcementItem - 4Description - GasketMaterial - Lexide NK-511 (non-asbestos)Item - 5Description - Cast BodyMaterial - A536 60-45-12 Ductile IronItem - 6Description - Backflow Rod (Optional)Material - A582, B505 Brass
Dimensions Dimension A
39 15/16 in
Dimensions Dimension B
19 1/4 in
Dimensions Drain Size
3 in
Dimensions Prefix Size
2000
Dimensions Shipping Weight
1,720 lb
Dimensions Size
20 in
Dimensions Valve Flow Coefficient Cv
14,200
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Ductile Iron
