Sure Flow CXF125IV 24in Ductile Iron Swing Check Valve
Sure Flow CXF125IV 24in Ductile Iron Swing Check Valve
SKU:DOU-221752
Reliable Sure Flow 24in Ductile Iron Swing Check Valve for municipal and industrial applications. ASME Class 125 and ISO 9001:2008 compliant.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Sure Flow CXF125IV 24in Ductile Iron Swing Check Valve
$1,599.99
Quantity: 1
Claim Your Seller Account
Sure Flow CXF125IV 24in Ductile Iron Swing Check Valve
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

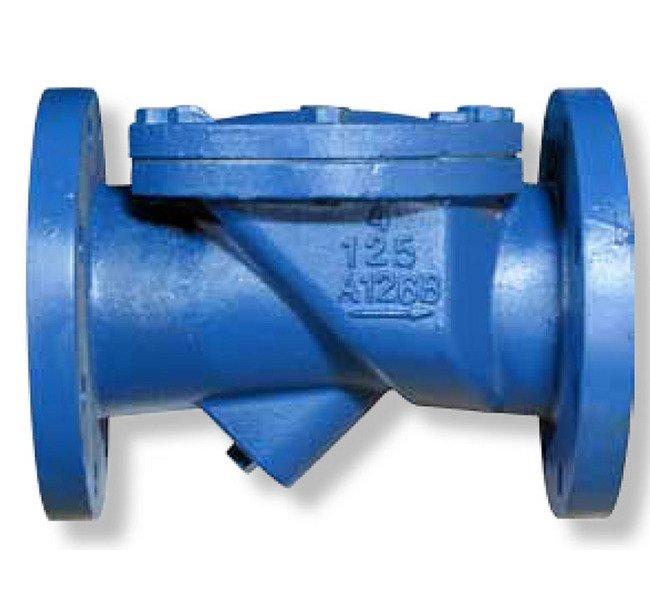

The Sure Flow CXF125IV 24in Ductile Iron Elastic Swing Check Valve with Flanged End Connections is designed for municipal and industrial applications. Featuring an epoxy-coated ductile iron body and ASME Class 125 flanges, this valve ensures reliable performance. The one-piece molded disc with steel reinforcement allows for 100% uninterrupted flow. With a repairable hinge and disc, maintenance is convenient without valve removal. Compliant with ASME Class 125 and ISO 9001:2008 standards, this valve guarantees quality and durability in any setting.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Optional: A Backflow Rod can be installed and used for draining or pump priming. This option is a safe and effective way to manually activate the valve.

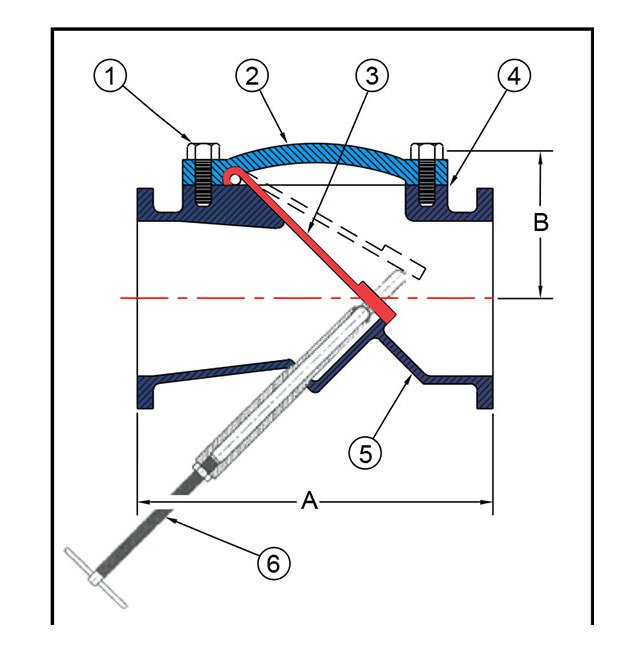

Construction Construction
Item - 1Description - Cover BoltsMaterial - Alloy Steel SAE Grade 5Item - 2Description - CoverMaterial - A536 60-45-12 Ductile IronItem - 3Description - DiscMaterial - Buna-N with Steel & Fabric ReinforcementItem - 4Description - GasketMaterial - Lexide NK-511 (non-asbestos)Item - 5Description - Cast BodyMaterial - A536 60-45-12 Ductile IronItem - 6Description - Backflow Rod (Optional)Material - A582, B505 Brass
Dimensions Dimension A
47 15/16 in
Dimensions Dimension B
22 3/4 in
Dimensions Drain Size
3 in
Dimensions Prefix Size
2400
Dimensions Shipping Weight
2,600 lb
Dimensions Size
24 in
Dimensions Valve Flow Coefficient Cv
21,000
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Ductile Iron
