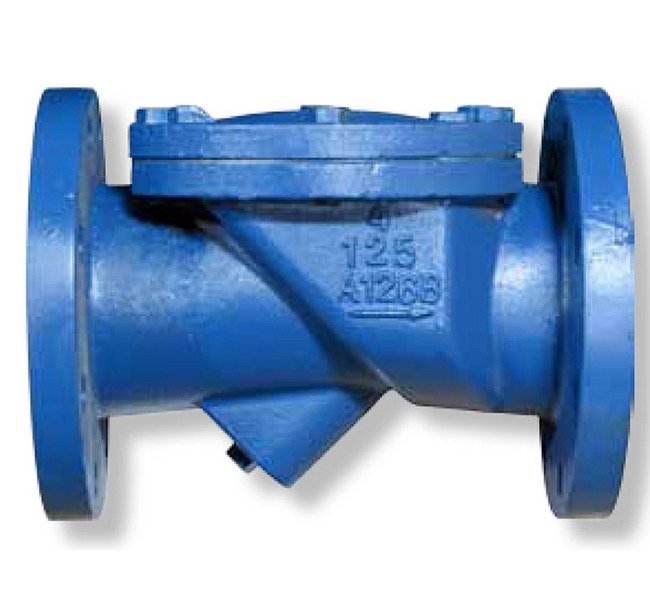

Sure Flow CXF125IV 3 Inch Ductile Iron Swing Check Valve
Sure Flow CXF125IV 3 Inch Ductile Iron Swing Check Valve
SKU:DOU-504956
Sure Flow swing check valve for municipal & industrial use. Ductile iron body with ASME Class 125 flanges. 100% flow guarantee.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow CXF125IV 3 Inch Ductile Iron Swing Check Valve
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow CXF125IV 3 Inch Ductile Iron Swing Check Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CXF125IV 3 Inch Ductile Iron Elastic Swing Check Valve with ASME Class 125 flanges is ideal for municipal and industrial applications. Featuring an epoxy-coated body, steel-reinforced one-piece molded disc, and easy repair capability without valve removal, this valve ensures 100% uninterrupted flow when open. With compliance to ASME Class 125 and ISO 9001:2008 standards, this valve guarantees durability and high performance for water, oil, and gas applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Optional: A Backflow Rod can be installed and used for draining or pump priming. This option is a safe and effective way to manually activate the valve.
Construction Construction

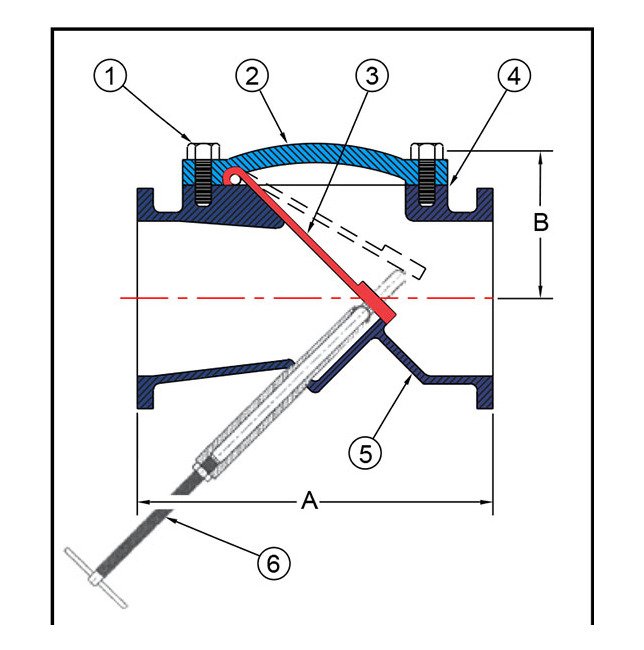

Item - 1Description - Cover BoltsMaterial - Alloy Steel SAE Grade 5Item - 2Description - CoverMaterial - A536 60-45-12 Ductile IronItem - 3Description - DiscMaterial - Buna-N with Steel & Fabric ReinforcementItem - 4Description - GasketMaterial - Lexide NK-511 (non-asbestos)Item - 5Description - Cast BodyMaterial - A536 60-45-12 Ductile IronItem - 6Description - Backflow Rod (Optional)Material - A582, B505 Brass
Dimensions Dimension A
9 1/2 in
Dimensions Dimension B
3 7/8 in
Dimensions Drain Size
3/4 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
46 lb
Dimensions Size
3 in
Dimensions Valve Flow Coefficient Cv
225
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
