Sure Flow CXF125IV 4" Ductile Iron Swing Check Valve
Sure Flow CXF125IV 4" Ductile Iron Swing Check Valve
SKU:DOU-2b0d15
Reliable Sure Flow CXF125IV 4" Ductile Iron Swing Check Valve for municipal & industrial use. ASME Class 125 & ISO 9001:2008 compliant.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
Sure Flow CXF125IV 4" Ductile Iron Swing Check Valve
$329.99
Quantity: 1
Claim Your Seller Account
Sure Flow CXF125IV 4" Ductile Iron Swing Check Valve
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

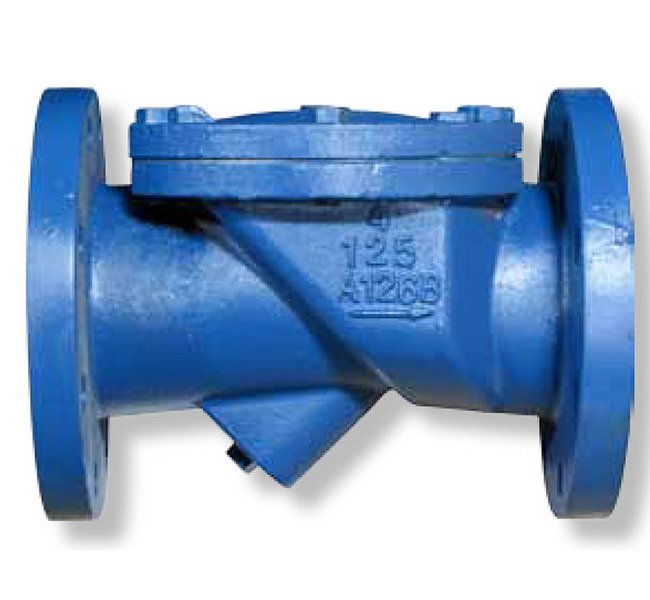

The Sure Flow CXF125IV 4" Ductile Iron Elastic Swing Check Valve with Flanged End Connections is ideal for municipal and industrial applications. This valve features a durable ductile iron body with ASME Class 125 flanges, epoxy coating for corrosion resistance, and a one-piece molded disc with steel reinforcement for reliable closure. With a Cv of 440, it allows 100% uninterrupted flow when open and enables easy repair of the disc hinge without valve removal. Optional backflow rod for drainage or pump priming adds versatility. Meet ASME Class 125 and ISO 9001:2008 standards.
Product Specifications
Additional Information Additional Information
Optional: A Backflow Rod can be installed and used for draining or pump priming. This option is a safe and effective way to manually activate the valve.
Construction Construction

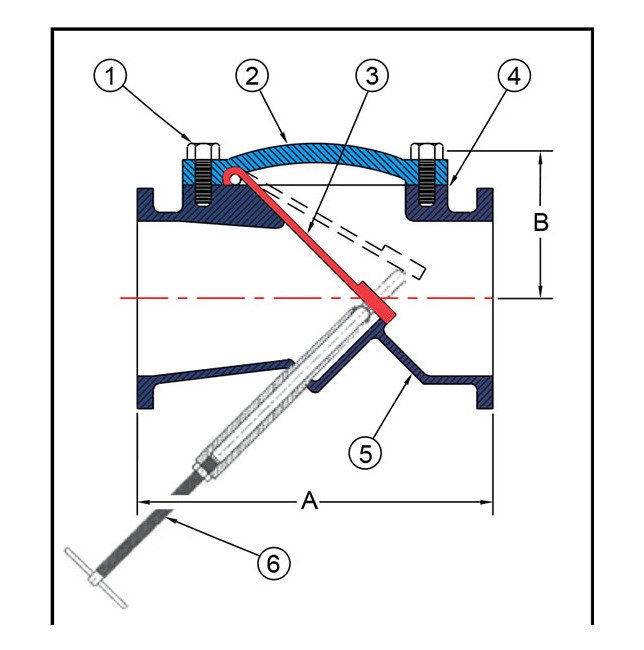

Item - 1Description - Cover BoltsMaterial - Alloy Steel SAE Grade 5Item - 2Description - CoverMaterial - A536 60-45-12 Ductile IronItem - 3Description - DiscMaterial - Buna-N with Steel & Fabric ReinforcementItem - 4Description - GasketMaterial - Lexide NK-511 (non-asbestos)Item - 5Description - Cast BodyMaterial - A536 60-45-12 Ductile IronItem - 6Description - Backflow Rod (Optional)Material - A582, B505 Brass
Dimensions Dimension A
11 1/2 in
Dimensions Dimension B
4 5/8 in
Dimensions Drain Size
1 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
70 lb
Dimensions Size
4 in
Dimensions Valve Flow Coefficient Cv
440
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
