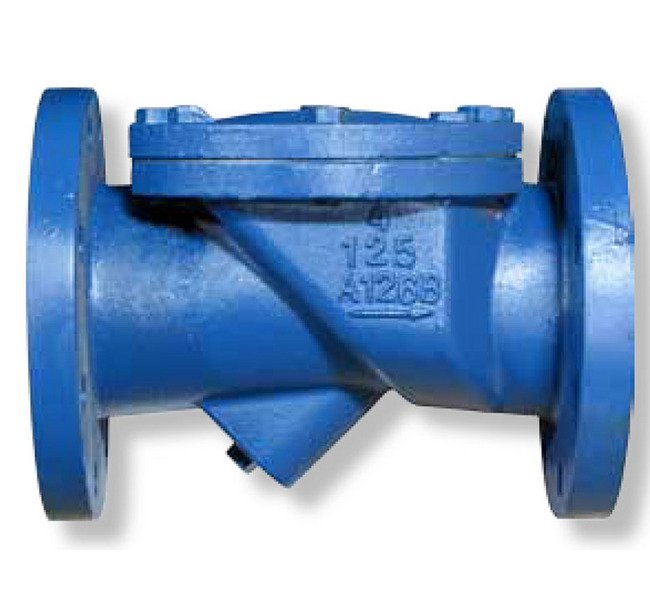

Sure Flow CXF125IV 5 Inch Ductile Iron Swing Check Valve
Sure Flow CXF125IV 5 Inch Ductile Iron Swing Check Valve
SKU:DOU-a33837
Experience unmatched reliability with Sure Flow's CXF125IV 5 Inch Ductile Iron Swing Check Valve.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Sure Flow CXF125IV 5 Inch Ductile Iron Swing Check Valve
$699.99
Quantity: 1
Claim Your Seller Account
Sure Flow CXF125IV 5 Inch Ductile Iron Swing Check Valve
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CXF125IV 5 Inch Ductile Iron Elastic Swing Check Valve with Flanged End Connections is designed for municipal and industrial applications. Featuring a ductile iron body with ASME Class 125 flanges and epoxy-coated internal body, this valve ensures long-lasting performance. The one-piece molded disc with steel reinforcement allows for 100% uninterrupted flow when open, and the hinge and disc are repairable without valve removal. Optional backflow rod installation offers manual valve activation for added convenience.
Product Specifications
Additional Information Additional Information
Optional: A Backflow Rod can be installed and used for draining or pump priming. This option is a safe and effective way to manually activate the valve.
Construction Construction

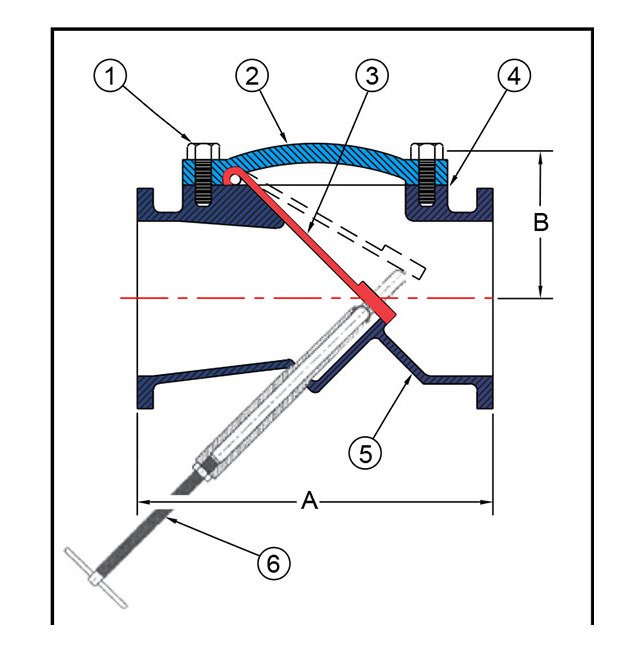

Item - 1Description - Cover BoltsMaterial - Alloy Steel SAE Grade 5Item - 2Description - CoverMaterial - A536 60-45-12 Ductile IronItem - 3Description - DiscMaterial - Buna-N with Steel & Fabric ReinforcementItem - 4Description - GasketMaterial - Lexide NK-511 (non-asbestos)Item - 5Description - Cast BodyMaterial - A536 60-45-12 Ductile IronItem - 6Description - Backflow Rod (Optional)Material - A582, B505 Brass
Dimensions Dimension A
13 3/4 in
Dimensions Dimension B
5 1/8 in
Dimensions Drain Size
1 in
Dimensions Prefix Size
0500
Dimensions Shipping Weight
105 lb
Dimensions Size
5 in
Dimensions Valve Flow Coefficient Cv
722
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
