Sure Flow Ductile Iron 4 Inch Elastic Swing Foot Valve

Sure Flow Ductile Iron 4 Inch Elastic Swing Foot Valve

DOU-c6debd

Sure Flow 4 Inch Elastic Swing Foot Valve for municipal and industrial applications. ASME Class 125 with epoxy-coated body allows 100% uninterrupted flow. Suitable for continuous flow applications.

$349.99
$349.99
Sale

Initiate Order

Sure Flow Ductile Iron 4 Inch Elastic Swing Foot Valve

Sure Flow Ductile Iron 4 Inch Elastic Swing Foot Valve

$349.99

Quantity: 1

Claim Your Seller Account

Sure Flow Ductile Iron 4 Inch Elastic Swing Foot Valve

Sure Flow Ductile Iron 4 Inch Elastic Swing Foot Valve

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow Ductile Iron 4 Inch Elastic Swing Foot Valve with Flanged End Connections is designed for municipal and industrial applications. This ASME Class 125 valve features an epoxy-coated body and a one-piece molded disc with steel reinforcement for reliable closure. With a flow coefficient of 352, this valve allows 100% uninterrupted flow, making it ideal for continuous flow applications. Suitable for horizontal or vertical installation, this valve is a robust choice for various fluid handling systems.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information Additional Information
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.
Construction Construction

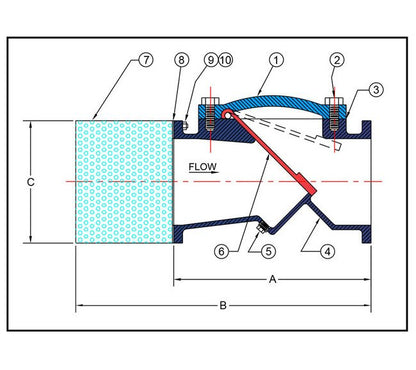

Item - 1Description - CoverItem - 2Description - Cover BoltsItem - 3Description - GasketItem - 4Description - Cast BodyItem - 5Description - DrainItem - 6Description - DiscItem - 7Description - Screen AssemblyItem - 8Description - Plate FlangeItem - 9Description - StudsItem - 10Description - Nuts
Dimensions Dimension A
11 1/2 in
Dimensions Dimension B
14 in
Dimensions Dimension C
9 1/4 in
Dimensions Drain Size
1 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
84 lb
Dimensions Size
4 in
Dimensions Valve Flow Coefficient Cv
352
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve comes standard with 1/8" pert. Stainless Steel Screen. Options are available.Horizontal Flow: Valve must be installed with cover on top to ensure proper operation.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
Specifications Orientation
Horizontal | Vertical
