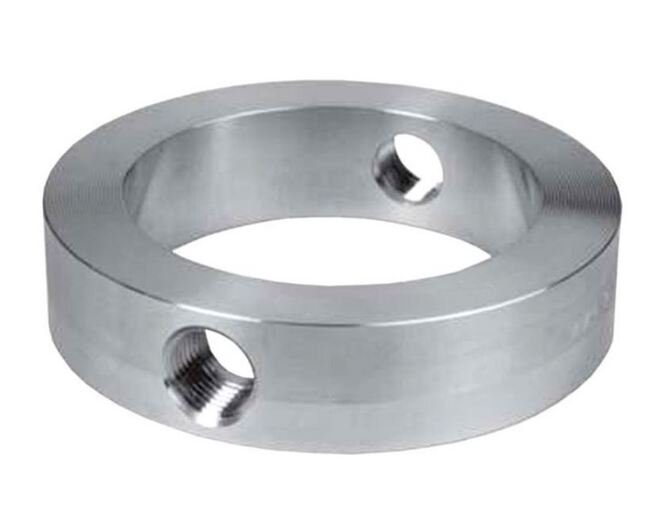

Sure Flow Equipment 1.5" Bleed & Flushing Ring
Sure Flow Equipment 1.5" Bleed & Flushing Ring
SKU:LIN-766ffb
Ensure precision and durability with Sure Flow's 1.5" Bleed and Flushing Ring, meeting ASME Class 150 & ISO 9001:2008 standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Sure Flow Equipment 1.5" Bleed & Flushing Ring
$59.99
Quantity: 1
Claim Your Seller Account
Sure Flow Equipment 1.5" Bleed & Flushing Ring
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow Equipment 1.5-inch Bleed and Flushing Ring is engineered to endure extreme pressure-temperature variations, meeting ASME Class 150 and ISO 9001:2008 standards. Made from high-grade Stainless Steel, with 720 psi at 100°F WOG pressure rating, it offers reliable performance. Threaded or socket-weld taps, ASME B16.5, B16.20, and B16.47 compliance assure precise fit and durability. Trust Sure Flow for quality and compliance.
Product Specifications
Additional Information Additional Information
Sure Flow Equipment Bleed Rings and Flushing Rings are produced in strict accordance with the following codes of practice:ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

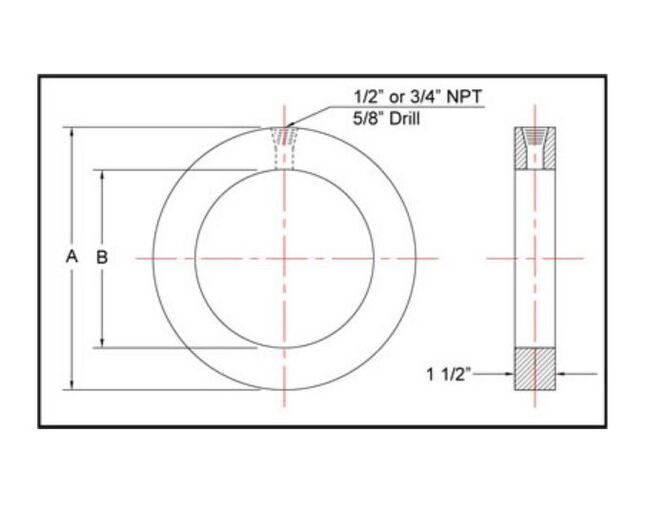

Dimensions Dimension A
3 5/8 in
Dimensions Dimension B
1 7/8 in
Dimensions Size
1 1/2 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Standard with 125-250 AARH Serrated FinishHigher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Material
Stainless Steel
Specifications Prefix Size
0150
Specifications Standard Material
SA516 Gr.70304 Stainless Steel316 Stainless Steel
Specifications Thread Size
1/2 in | 3/4 in
