Sure Flow Equipment 1.5 Inch 275 PSI Bleed and Flushing Ring

Sure Flow Equipment 1.5 Inch 275 PSI Bleed and Flushing Ring

LIN-7e715b

Trust in Sure Flow Equipment for top-quality 1.5 Inch 275 PSI Bleed and Flushing Ring, designed for high pressures and temperatures in water, oil, and gas applications.

$299.99
$299.99
Sale

Initiate Order

Sure Flow Equipment 1.5 Inch 275 PSI Bleed and Flushing Ring

Sure Flow Equipment 1.5 Inch 275 PSI Bleed and Flushing Ring

$299.99

Quantity: 1

Claim Your Seller Account

Sure Flow Equipment 1.5 Inch 275 PSI Bleed and Flushing Ring

Sure Flow Equipment 1.5 Inch 275 PSI Bleed and Flushing Ring

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

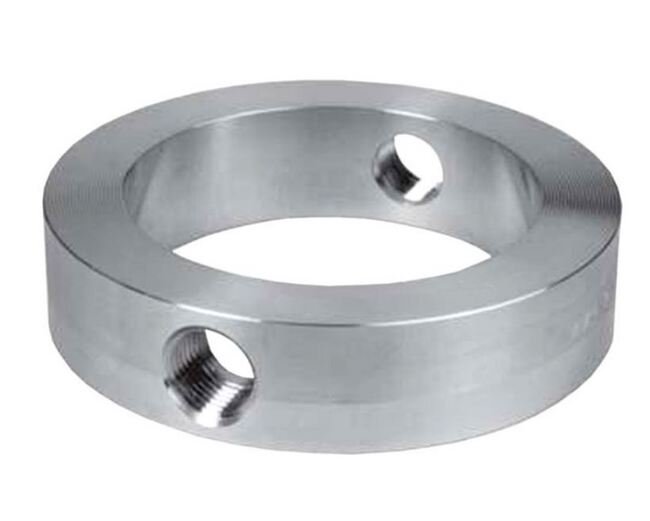

The Sure Flow Equipment 1.5 Inch Bleed and Flushing Ring is a durable and reliable solution designed to withstand high pressures and temperatures, meeting ASME Class 150 and ISO 9001:2008 standards. Constructed from high-quality stainless steel materials, this ring ensures exceptional performance in water, oil, and gas applications. With threaded or socket-weld taps and options for additional taps, this ring offers versatility and efficiency for various industrial settings. Trust in Sure Flow Equipment for top-quality bleed rings manufactured in strict compliance with ASME standards.

Product Specifications

Additional Information Additional Information
Sure Flow Equipment Bleed Rings and Flushing Rings are produced in strict accordance with the following codes of practice:ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

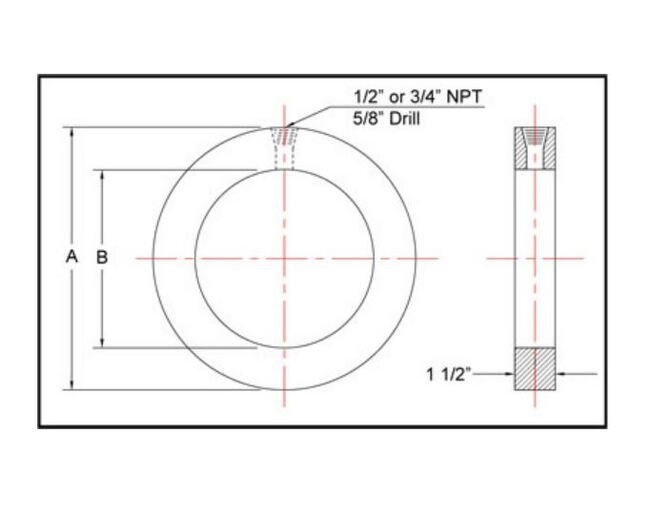

Dimensions Dimension A
3 1/4 in
Dimensions Dimension B
1 7/8 in
Dimensions Size
1 1/2 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Standard with 125-250 AARH Serrated FinishHigher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Material
Stainless Steel
Specifications Prefix Size
0150
Specifications Standard Material
SA516 Gr.70304 Stainless Steel316 Stainless Steel
Specifications Thread Size
1/2 in | 3/4 in
