Sure Flow Equipment 2 Inch Bleed & Flushing Ring, 740 psi @ 100ºF WOG
Sure Flow Equipment 2 Inch Bleed & Flushing Ring, 740 psi @ 100ºF WOG
SKU:LIN-0bb370
Sure Flow 2" Bleed & Flush Ring: High-pressure, ASME & ISO certified, versatile taps, corrosion-resistant primer.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Sure Flow Equipment 2 Inch Bleed & Flushing Ring, 740 psi @ 100ºF WOG
$89.99
Quantity: 1
Claim Your Seller Account
Sure Flow Equipment 2 Inch Bleed & Flushing Ring, 740 psi @ 100ºF WOG
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

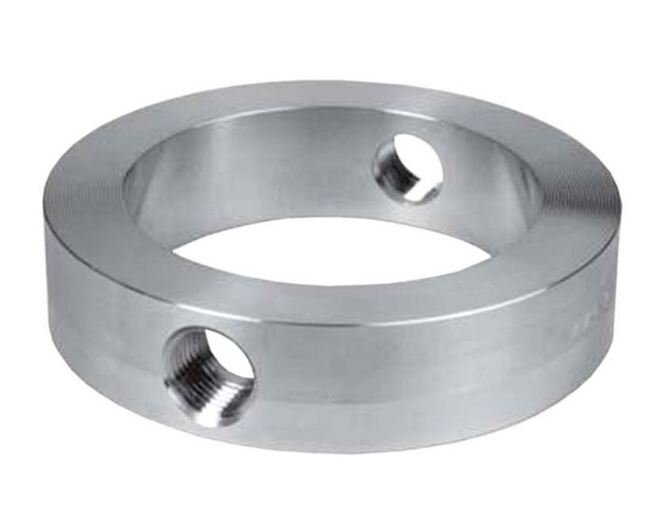

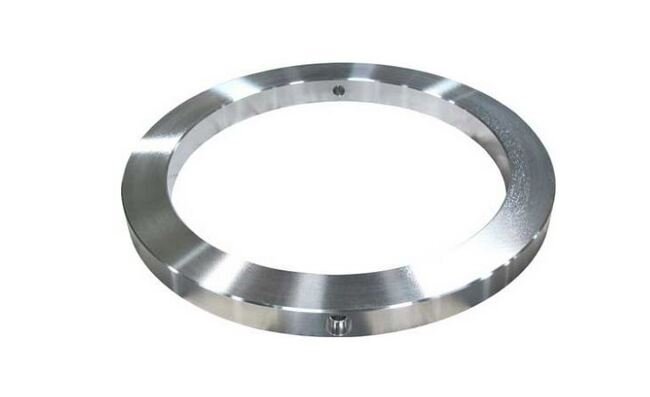

The Sure Flow Equipment 2-inch Bleed and Flushing Ring is designed to handle high-pressure and temperature conditions, meeting ASME Class 150 and ISO 9001:2008 standards. Built from carbon steel with options for stainless steel, it guarantees durability and reliability. With threaded or socket-weld taps, this ring offers versatility while ensuring pressure integrity. Sure Flow rings are primed for corrosion resistance and conform to ASME B16.5, B16.20, and B16.47 standards, making them ideal for industrial applications.
Product Specifications
Additional Information Additional Information
Sure Flow Equipment Bleed Rings and Flushing Rings are produced in strict accordance with the following codes of practice:ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

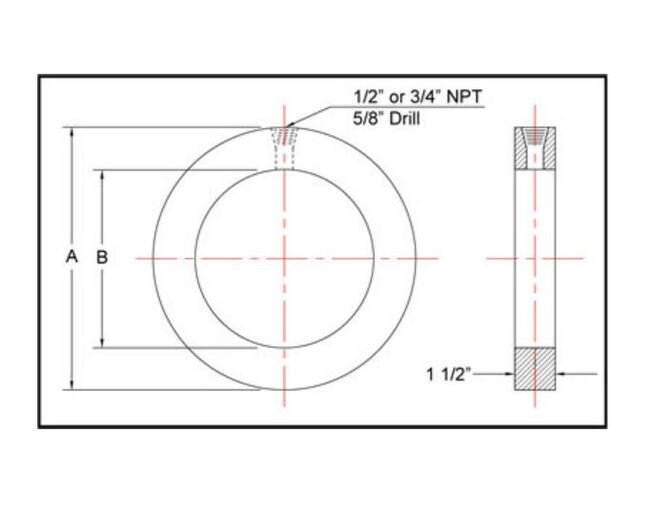

Dimensions Dimension A
4 1/4 in
Dimensions Dimension B
2 3/8 in
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Standard with 125-250 AARH Serrated FinishHigher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
740 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Material
Carbon Steel
Specifications Prefix Size
0200
Specifications Standard Material
SA516 Gr.70304 Stainless Steel316 Stainless Steel
Specifications Thread Size
1/2 in | 3/4 in
