Sure Flow Equipment 3 Inch Bleed and Flushing Ring
Sure Flow Equipment 3 Inch Bleed and Flushing Ring
SKU:LIN-c262b0
High-pressure, high-temperature 3
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Sure Flow Equipment 3 Inch Bleed and Flushing Ring
$49.99
Quantity: 1
Claim Your Seller Account
Sure Flow Equipment 3 Inch Bleed and Flushing Ring
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow Equipment 3 Inch Bleed and Flushing Ring is a durable solution designed to handle high pressures and temperatures for water, oil, and gas applications. Crafted from carbon steel with options for stainless steel, this ring meets ASME Class 150 and ISO 9001:2008 standards. It features multiple tapped options, a shop primer coating, and strict adherence to industry codes ensuring reliability and performance. Trust Sure Flow for quality and compliance in your industrial operations.
Product Specifications
Additional Information Additional Information
Sure Flow Equipment Bleed Rings and Flushing Rings are produced in strict accordance with the following codes of practice:ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

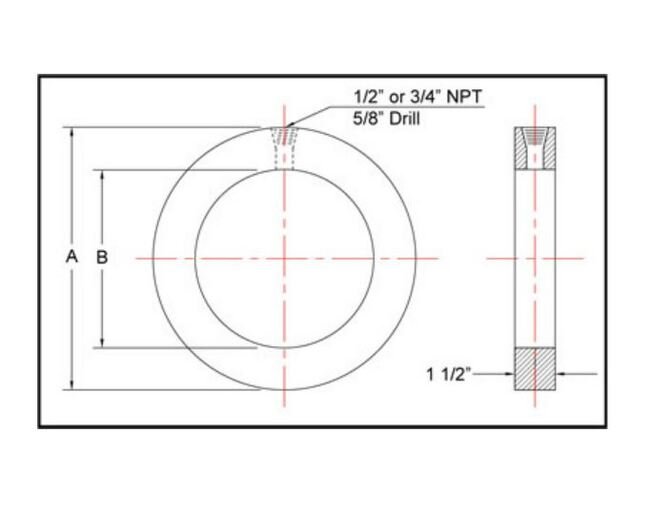

Dimensions Dimension A
5 3/4 in
Dimensions Dimension B
3 1/2 in
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Standard with 125-250 AARH Serrated FinishHigher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1480 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Specifications Material
Carbon Steel
Specifications Prefix Size
0300
Specifications Standard Material
SA516 Gr.70304 Stainless Steel316 Stainless Steel
Specifications Thread Size
1/2 in | 3/4 in
